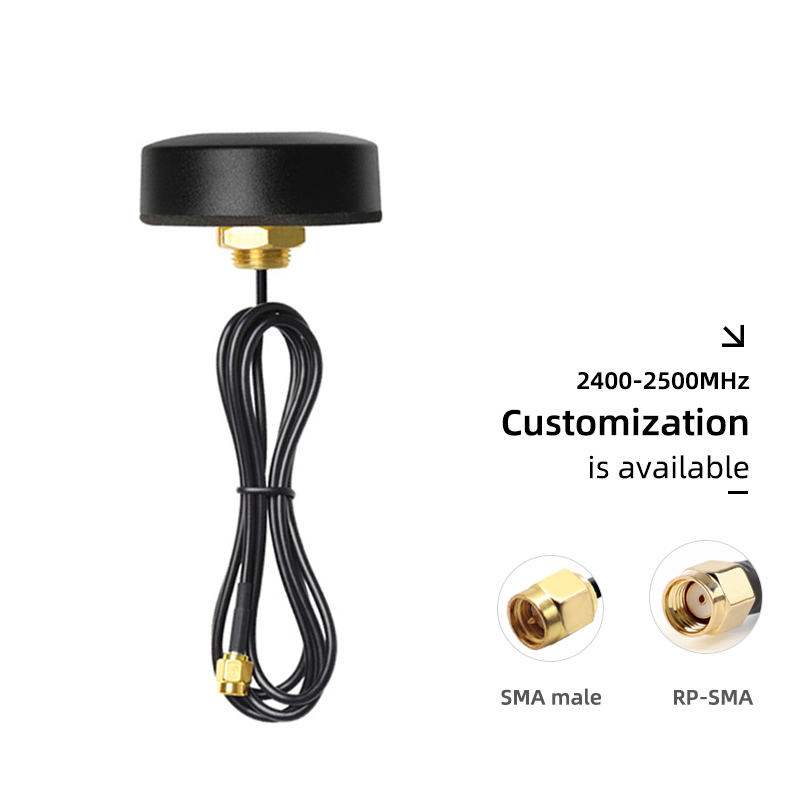

The 2.4G Cabinet Antenna (Model: BF2.4GGWX46X16SJL1000) is a professional wireless communication component tailored for cabinet-mounted wireless devices. Equipped with an SMA male straight connector and 1000mm RG174 cable, it features stable connection and flexible installation in limited cabinet spaces. Adopting high-quality materials, it supports 2400-2500MHz full-band coverage and 360° omnidirectional radiation, ensuring uniform and reliable signal transmission for various cabinet-integrated devices. Compliant with international RoHS and REACH regulations, it is widely applicable in industrial control, cabinet-mounted routers, IoT gateways and other scenarios.

Core Specifications

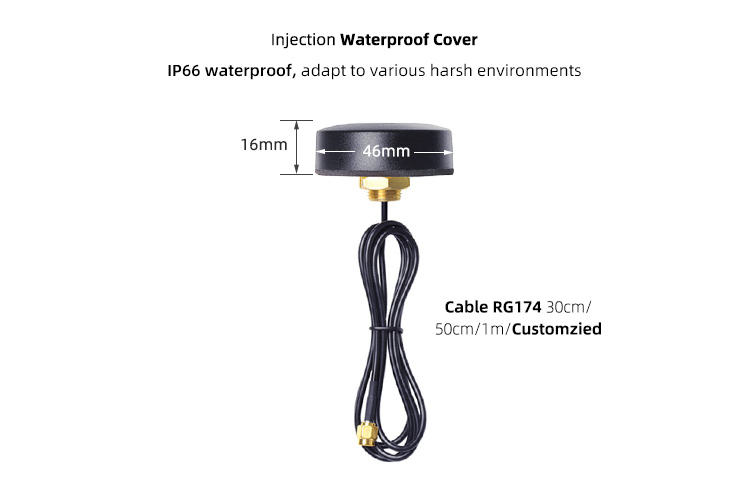

This 2.4G cabinet antenna adopts the model BF2.4GGWX46X16SJL1000, with a working frequency range of 2400-2500MHz to achieve full-band coverage and avoid signal interruption due to frequency deviation. It is equipped with an SMA male straight connector for firm and stable connection with compatible devices, and comes with an RG174 cable of 1000mm length to meet flexible wiring needs in cabinets. The radiation pattern is 360° omnidirectional, ensuring uniform signal distribution without blind areas around the cabinet. The product dimensions are 16 mm × Φ 46 mm, compact enough to fit in narrow cabinet spaces. It is strictly compliant with RoHS and REACH regulations, making it safe for global market circulation without environmental certification barriers.

Product Features

1. Full-Band Stable Coverage: With 2400-2500MHz full-band design, the antenna maintains stable signal transmission across the entire 2.4G frequency band, adapting to various wireless communication needs of cabinet-mounted devices and effectively resisting frequency interference.
2. SMA Male Straight Connector: The SMA male straight connector ensures tight connection with devices, reducing signal loss caused by loose interfaces. Its straight design is suitable for cabinet environments with limited installation space, facilitating quick assembly and disassembly during maintenance.
3. High-Quality RG174 Cable: Equipped with a 1000mm RG174 cable, the antenna offers flexible wiring in cabinets, allowing adjustment of installation position according to device layout. The cable has excellent shielding performance to minimize external interference and ensure signal integrity.
4. 360° Omnidirectional Radiation: The omnidirectional radiation pattern enables 360° no-dead-angle signal coverage around the cabinet, ensuring that wireless devices in different positions inside or around the cabinet can stably receive and transmit signals.
5. Compact & Compliance Design: With dimensions of 16 mm × Φ 46 mm, it fits seamlessly into cabinet spaces without occupying excessive area. Compliance with RoHS and REACH regulations ensures it meets environmental standards of global markets, facilitating cross-border sales.

Application Scenarios

This 2.4G cabinet antenna is widely used in cabinet-mounted wireless communication devices, including but not limited to cabinet-mounted WiFi routers, industrial IoT gateways, remote control terminals, cabinet-integrated monitoring devices and industrial control systems. It is especially suitable for scenarios such as factory workshops, data centers, and equipment cabinets that require stable 2.4G signal transmission and space-saving installation, providing reliable wireless support for device operation.
