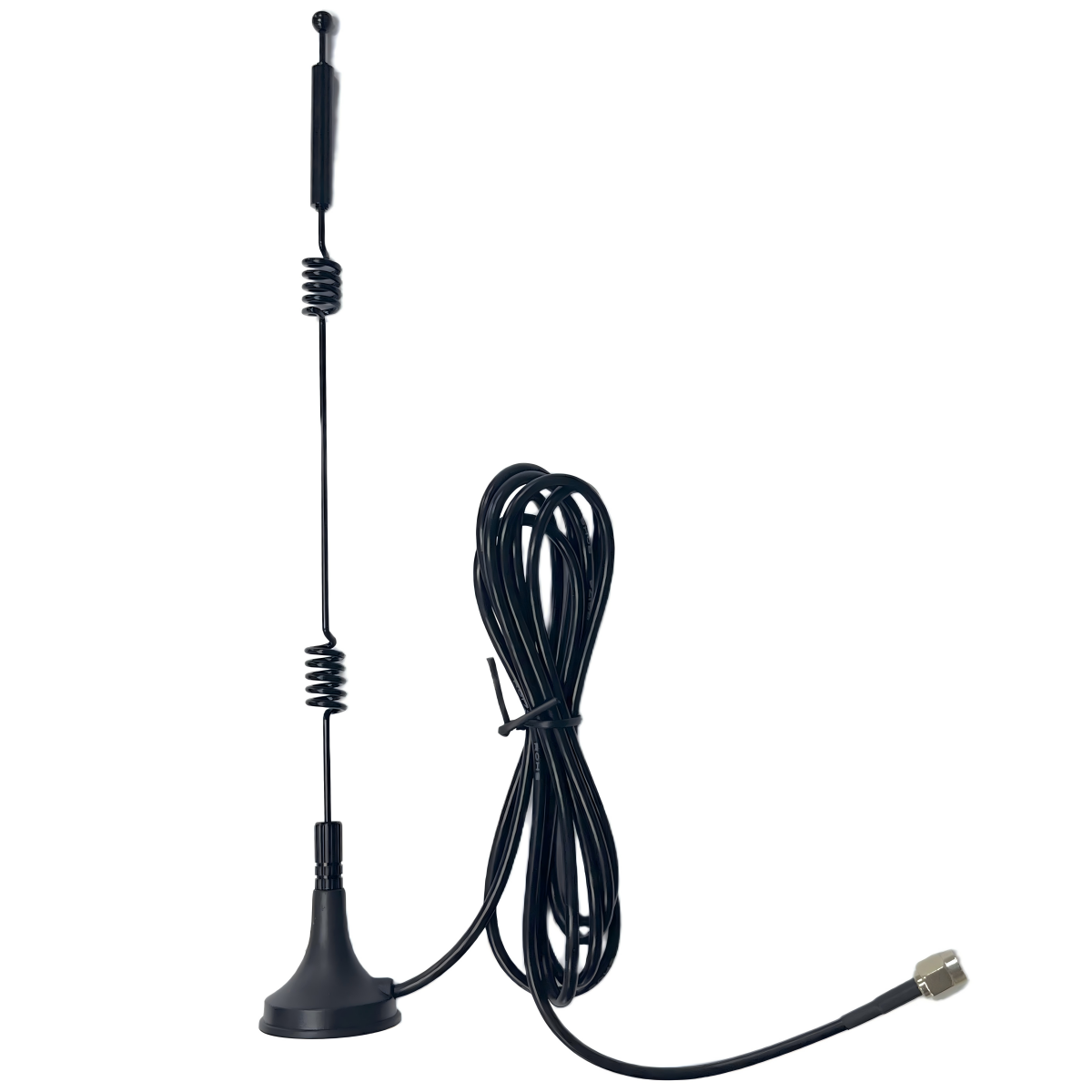

The 2.4G/5.8G Magnetic Mount Antenna (Model: BF258XWX195X8SJL1500) is a high-performance dual-band wireless communication component designed for flexible and quick installation scenarios. Equipped with a strong magnetic base, SMA male straight connector, and 1500mm RG174 cable, it can be firmly attached to any ferrous metal surface without additional brackets, ideal for mobile and temporary deployment devices. Supporting full-band coverage of 2400-2500MHz (2.4G) and 5150-5850MHz (5.8G), this antenna is compatible with mainstream dual-band wireless protocols, delivering stable signal transmission and reception. Featuring a 360° omnidirectional radiation pattern and a compact size of 223mm×Φ30mm, it is widely used in vehicle-mounted devices, outdoor monitoring cameras, temporary WiFi base stations, and drone ground control stations. The antenna boasts excellent anti-interference performance and durability, adapting to various indoor and outdoor environments.

Core Specifications

This magnetic mount antenna adopts the model number BF258XWX195X8SJL1500, with a dual-band working frequency range of 2400-2500MHz and 5150-5850MHz, ensuring seamless signal coverage across both bands without frequency drift. It is fitted with a standard SMA male straight connector, which has strong compatibility with SMA female interfaces of wireless devices, ensuring a tight and vibration-resistant connection to minimize signal loss. The antenna comes with a 1500mm RG174 cable that offers superior flexibility and shielding performance, allowing flexible wiring between the antenna and device, and effectively reducing external electromagnetic interference. Its radiation pattern is 360° omnidirectional, guaranteeing uniform signal coverage in all directions and eliminating blind spots. The product dimensions are 223mm×Φ30mm, with a lightweight structure combined with a high-strength magnetic base, enabling quick installation and stable fixation on metal surfaces such as car roofs, iron frames, and equipment casings.

Product Features

1. Dual-Band Wide Coverage: Supports 2400-2500MHz and 5150-5850MHz dual-band operation, compatible with 2.4G and 5.8G wireless devices, meeting diverse communication needs like data transmission, video streaming, and remote control.
2. Convenient Magnetic Mount Design: The built-in strong magnetic base enables quick adsorption on any ferrous metal surface, no drilling or screws required, greatly reducing installation time and labor costs, and allowing easy repositioning.
3. Stable SMA Male Straight Connector: The SMA male straight interface ensures a firm connection with devices, resisting loosening caused by vibration during movement (e.g., vehicle-mounted scenarios), maintaining continuous and reliable signal transmission.
4. Flexible 1500mm RG174 Cable: The 1500mm-long RG174 cable provides sufficient length for flexible wiring, allowing the antenna to be placed in a signal-optimal position away from device interference sources, improving signal reception quality.
5. 360° Omnidirectional Radiation: The omnidirectional radiation design achieves uniform signal coverage in all directions, making the antenna suitable for mobile devices or scenarios with variable installation positions, no need to adjust orientation for signal optimization.
6. Durable & Compact Structure: With a size of 223×Φ30mm, the antenna is compact and lightweight, featuring a sturdy shell that resists wind, rain, and sunlight, suitable for long-term outdoor use without performance degradation.

Application Scenarios

This 2.4G/5.8G magnetic mount antenna is widely applicable to dual-band wireless communication devices, including but not limited to vehicle-mounted WiFi routers, outdoor wireless monitoring cameras, temporary communication base stations, drone ground control stations, mobile data collectors, and industrial wireless sensors. It is especially suitable for scenarios that require quick installation, easy relocation, and stable signal coverage, such as vehicle fleet management, construction site monitoring, outdoor event WiFi coverage, and emergency communication system deployment.
