This ultra-thin and lightweight ceramic satellite navigation antenna features an extremely compact mechanical design, excellent electrical performance, and strong environmental adaptability, making it a core signal reception solution for ultra-miniaturized scenarios such as smart wearables and micro IoT devices.

Features

• Electrical Characteristics
• Antenna Type: Adopts ceramic antenna to provide a stable physical carrier for satellite signal reception, and the material ensures the consistency of signal transmission.
• Frequency Range: Covers 1575±5 MHz, 1561±5 MHz, precisely matching the core frequency bands of GPS and other satellite navigation systems to ensure the accuracy of signal capture.
• Input Impedance: 50Ω, seamlessly compatible with industry-standard RF modules, simplifying system integration processes.
• V.S.W.R (Voltage Standing Wave Ratio): <3, effectively reducing signal reflection loss and improving signal transmission efficiency, with stable performance in weak signal environments.
• Gain Performance: Passive antenna gain is -0.9 dBi at 1561 MHz and 0.7 dBi at 1575 MHz; with a 21.5 dBi Low Noise Amplifier (LNA), it significantly enhances reception sensitivity in weak signal environments, and positioning accuracy is better in complex scenarios.
• Polarization Type: Right-hand circular polarization (RHCP), fully matching the polarization of satellite transmitted signals. In scenarios such as urban building occlusions and multipath interference, signal reception stability is far superior to similar products.
• Power Capacity: 50W, with strong power-carrying capacity, suitable for high-power RF application scenarios.
• Power Consumption and Voltage: Current consumption is only 4.3 mA, and DC voltage supports 1.8-3.6 V, perfectly meeting the low-power supply requirements of smart wearables and micro devices.
• Mechanical Characteristics

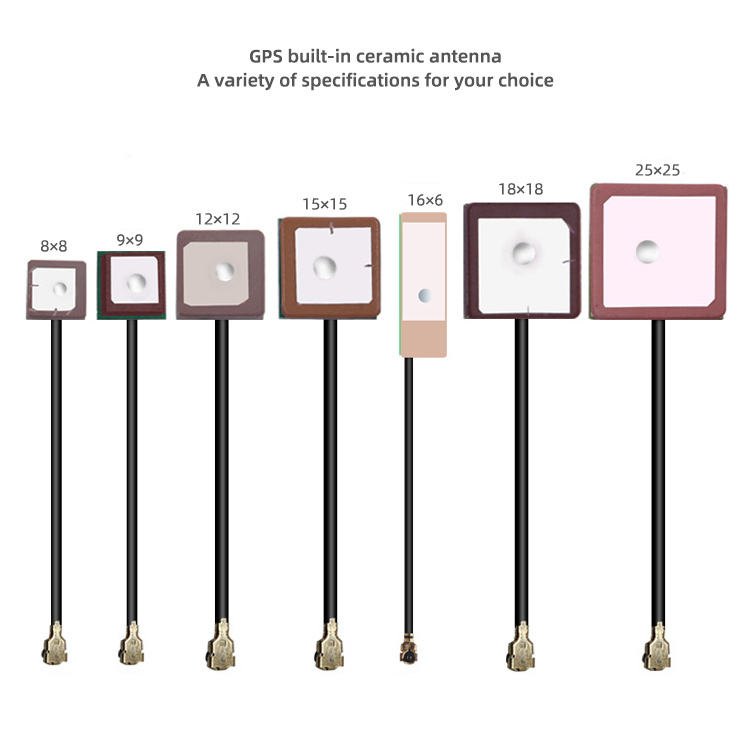

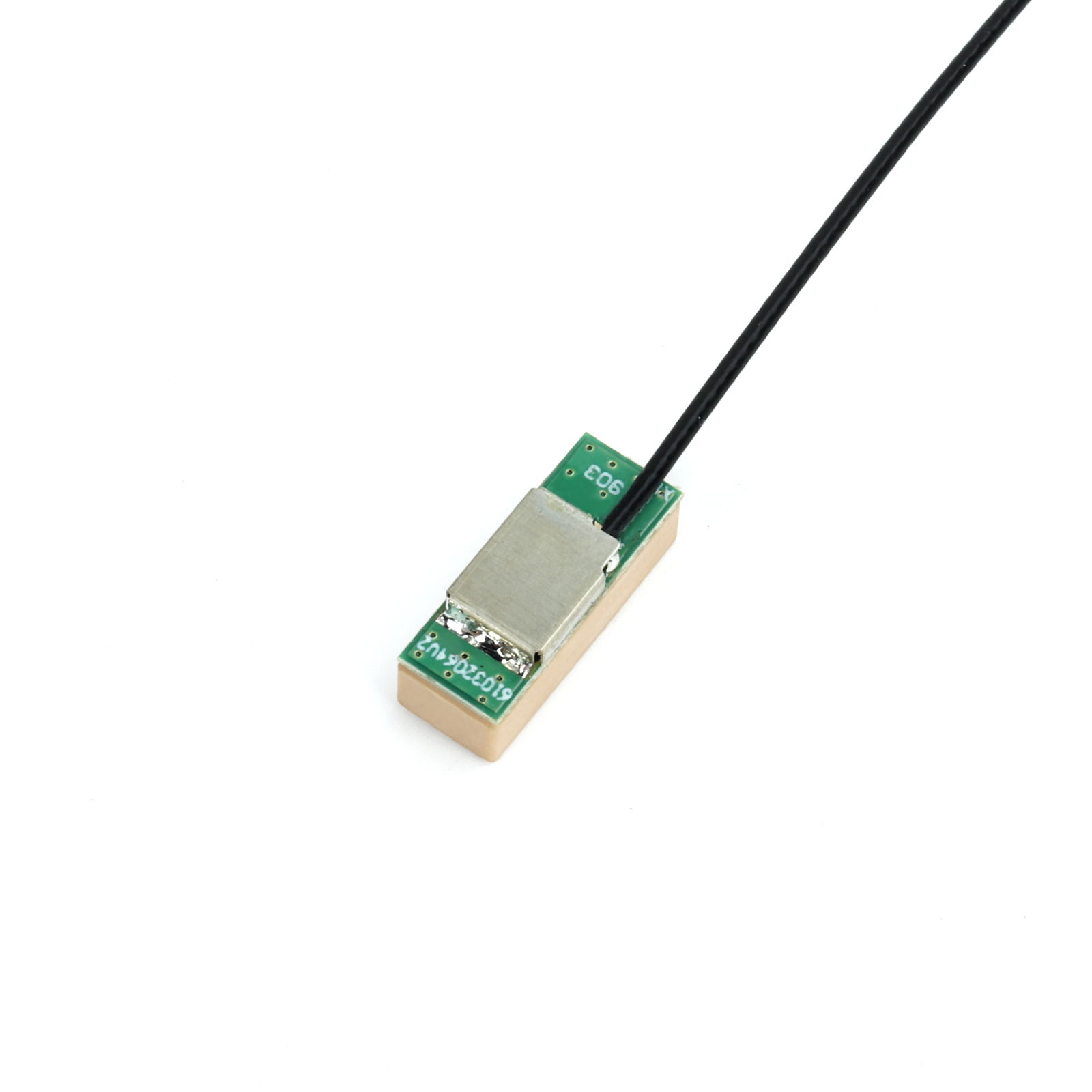

• Dimensions: 16×6×4.5 mm, the ultra-thin structure (only 4.5mm thick) can be easily embedded in ultra-compact devices such as smartwatches and micro trackers, releasing great space for product industrial design.

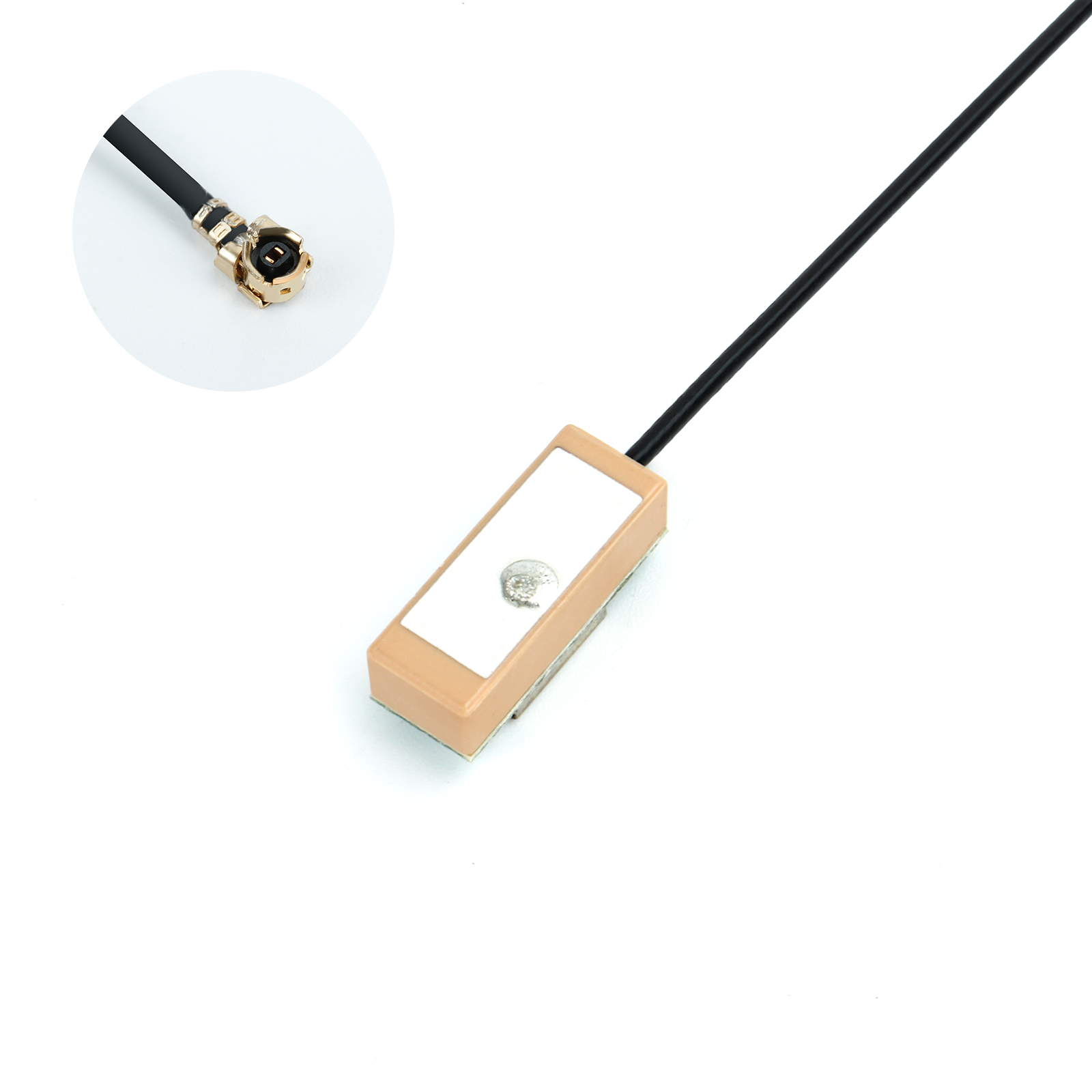

• Connection Solution: IPEX-1 connector (customizable), RG1.13 cable (customizable), cable length 120 mm (customizable), supporting flexible adjustment according to device structure to meet different assembly requirements.
• Mounting Method: Press-fit, the process is simple and efficient, enabling automated batch assembly and reducing production costs.
• Appearance and Material: Silver-white ceramic material, with wear-resistant and anti-interference characteristics, weighing only 2.33 g. The lightweight design has almost no impact on the overall weight of portable devices, improving the wearing or carrying experience of terminal products.
• Environmental Characteristics
• Environmental Compliance: RoHS compliant, meeting EU and global mainstream environmental standards, and can enter various markets such as consumer electronics and IoT without obstacles.
• Temperature Adaptability: Operating temperature -45~+85℃, storage temperature -45~+85℃, can operate stably in extreme environments such as polar regions, deserts, and industrial high temperatures, and its reliability can withstand severe tests.

Advantages

• Ultra-Thin and Lightweight “No Burden”: The ultra-thin size of 16×6×4.5mm + ultra-light weight of 2.33g is the key for smart wearables and micro devices to achieve “invisible integration”, which neither affects the appearance design of the device nor increases the carrying burden.
• Strong and Stable Signal Reception: The combination of RHCP and high-gain LNA far exceeds ordinary antennas in terms of positioning speed and accuracy in urban canyons, indoor weak signal scenarios, providing stable signal support for devices.
• Ultra-Flexible Integration: Customizable connection solutions + press-fit installation can adapt to the structural limitations of different forms of devices such as smart bracelets and micro sensors, helping to innovatively integrate product functions and forms.
• Ultra-Reliable Quality: Ceramic material has strong weather resistance, and the wide temperature range design + RoHS compliance not only ensures the stable operation of devices in long-term outdoor and industrial environments but also meets the environmental quality requirements of consumer electronics.

Application Scenarios

• Smart Wearables: Integrated into smartwatches and health bracelets, providing real-time and precise positioning in outdoor scenarios such as running and mountain climbing. The ultra-thin design does not affect the wearing comfort of the device, achieving a perfect combination of “fashion and function”.
• Micro IoT Trackers: Such as micro pet trackers and jewelry positioning tags, the ultra-small size + low-power characteristics make it possible to “invisibly” embed in tracked objects, realizing precise traceability in home and logistics scenarios without affecting the appearance and use of tracked objects.
• Medical Micro Devices: Such as wearable health monitoring devices (smart patches), the ultra-thin and lightweight design can fit human skin, providing precise positioning while monitoring health data, helping to intelligentize management in medical scenarios.
• Consumer-Level Micro Drones: Equipped on mini aerial photography drones (such as pocket drones), the high-gain antenna ensures precise navigation in complex terrains (such as urban buildings), enabling stable aerial photography and path planning, and the overall device remains extremely portable.
• Industrial Micro Sensors: In micro monitoring nodes of industrial automated production lines, the wide temperature range and high reliability ensure stable transmission of position data in high-temperature, cold storage and other environments, helping to refine the upgrading of intelligent manufacturing.
