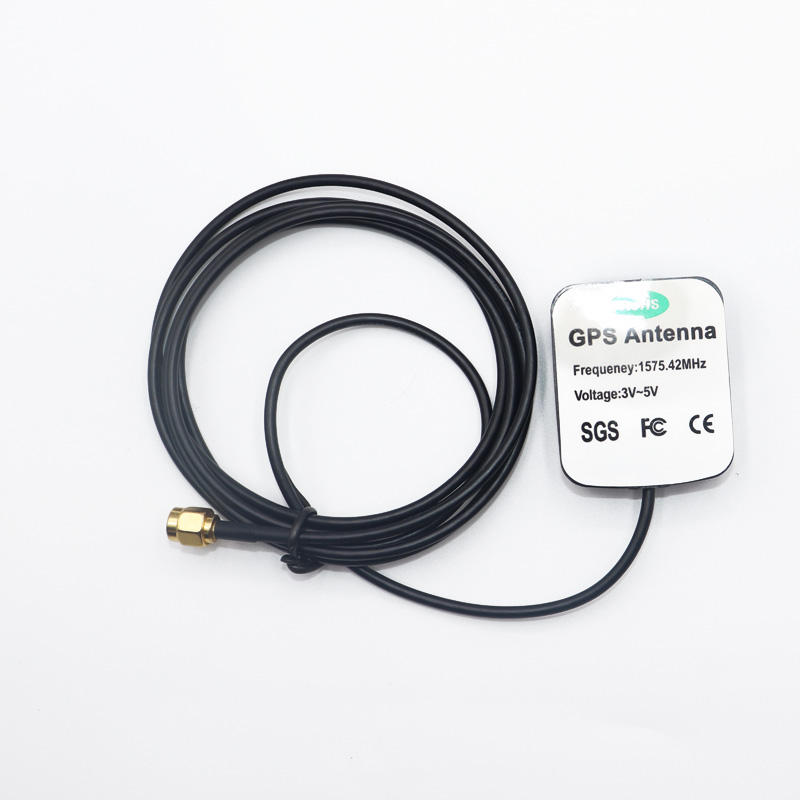

The GNSS Cabinet Antenna (Model: BFGNSSGWX46X27SWL5000) is a high-precision positioning component designed exclusively for cabinet-mounted industrial devices requiring reliable GNSS signal reception. Tuned precisely to the 1555-1580MHz frequency band, it is compatible with mainstream satellite navigation systems including GPS, Beidou, GLONASS, and Galileo, ensuring stable positioning performance in complex environments. Equipped with an SMA male right-angle connector and a 5000mm RG174 cable, it is tailored for the narrow installation spaces inside industrial cabinets, avoiding interference with other equipment and enabling flexible wiring. Featuring a 360° omnidirectional radiation pattern and a compact size of 45.5×35.5×15.3mm, the antenna delivers uniform signal coverage to capture satellite signals from all directions, eliminating positioning blind spots. Its sturdy, industrial-grade design resists dust, moisture, and electromagnetic interference, making it suitable for long-term operation in factory control cabinets, IoT gateways, and smart grid terminal cabinets.

Core Specifications

This GNSS cabinet antenna adopts the model number BFGNSSGWX46X27SWL5000, with a dedicated working frequency range of 1555-1580MHz to match the core bands of global GNSS systems, ensuring high-precision positioning without signal drift. It is fitted with a standard SMA male right-angle connector, which is optimized for cabinet installation scenarios—its L-shaped design reduces the space occupied in the cabinet and prevents cable bending damage during long-term use. The antenna is paired with a 5000mm RG174 cable that offers excellent flexibility and shielding performance, effectively reducing electromagnetic interference from internal cabinet devices and ensuring stable signal transmission. Its radiation pattern is 360° omnidirectional, guaranteeing that the antenna can receive satellite signals from any angle, which is critical for maintaining positioning accuracy when the cabinet is placed in a fixed location. The product dimensions are 45.5×35.5×15.3mm, with a slim, flat structure that can be easily mounted on cabinet inner walls or equipment brackets using screws or adhesive.

Product Features

1. 1555-1580MHz GNSS Band Optimization: Precisely tuned to the core frequency band of global satellite navigation systems, compatible with GPS, Beidou, GLONASS, and Galileo, ensuring high-precision positioning for industrial devices.
2. SMA Male Right-Angle Connector: The L-shaped right-angle design is specially optimized for cabinet installation, saving internal space and preventing cable wear caused by bending, suitable for compact cabinet layouts.
3. 5000mm Flexible RG174 Cable: The 5-meter-long cable provides ample wiring length for large industrial cabinets, allowing the antenna to be installed in the optimal position to receive satellite signals, away from interference sources such as power supplies and motors.
4. 360° Omnidirectional Radiation: The omnidirectional design enables the antenna to capture satellite signals from all directions, maintaining stable positioning accuracy even if the cabinet is surrounded by obstacles, eliminating the need to adjust the antenna orientation.

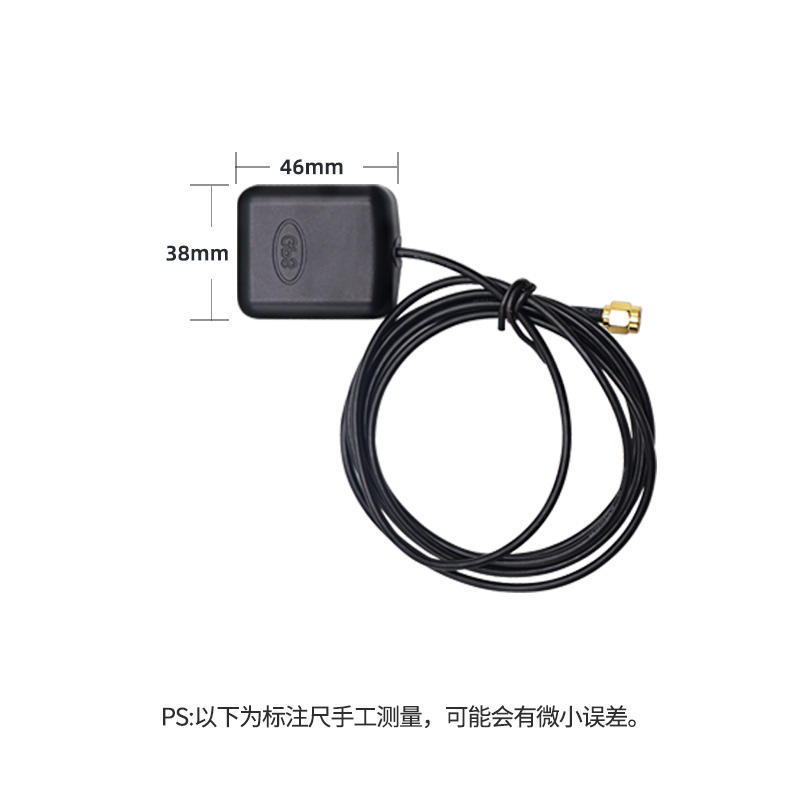

5. Ultra-Compact Flat Structure: With dimensions of 45.5×35.5×15.3mm, the slim flat design can be seamlessly integrated into tight cabinet spaces, avoiding conflicts with other modules and optimizing cabinet space utilization.
6. Industrial-Grade Reliability: Made of high-quality flame-retardant materials with sealed edge processing, it resists dust, moisture, and electromagnetic interference, suitable for long-term stable operation in harsh industrial environments.

Application Scenarios

This GNSS cabinet antenna is widely applicable to industrial equipment that requires high-precision positioning and stable operation in cabinet environments, including but not limited to industrial IoT gateways, smart grid terminal cabinets, logistics vehicle scheduling control cabinets, environmental monitoring data acquisition cabinets, and urban public facility management cabinets. It is especially suitable for scenarios that require fixed-point positioning and data uploading, such as factory automation systems, power grid remote monitoring, and smart city infrastructure management, providing reliable GNSS positioning support for device operation.
