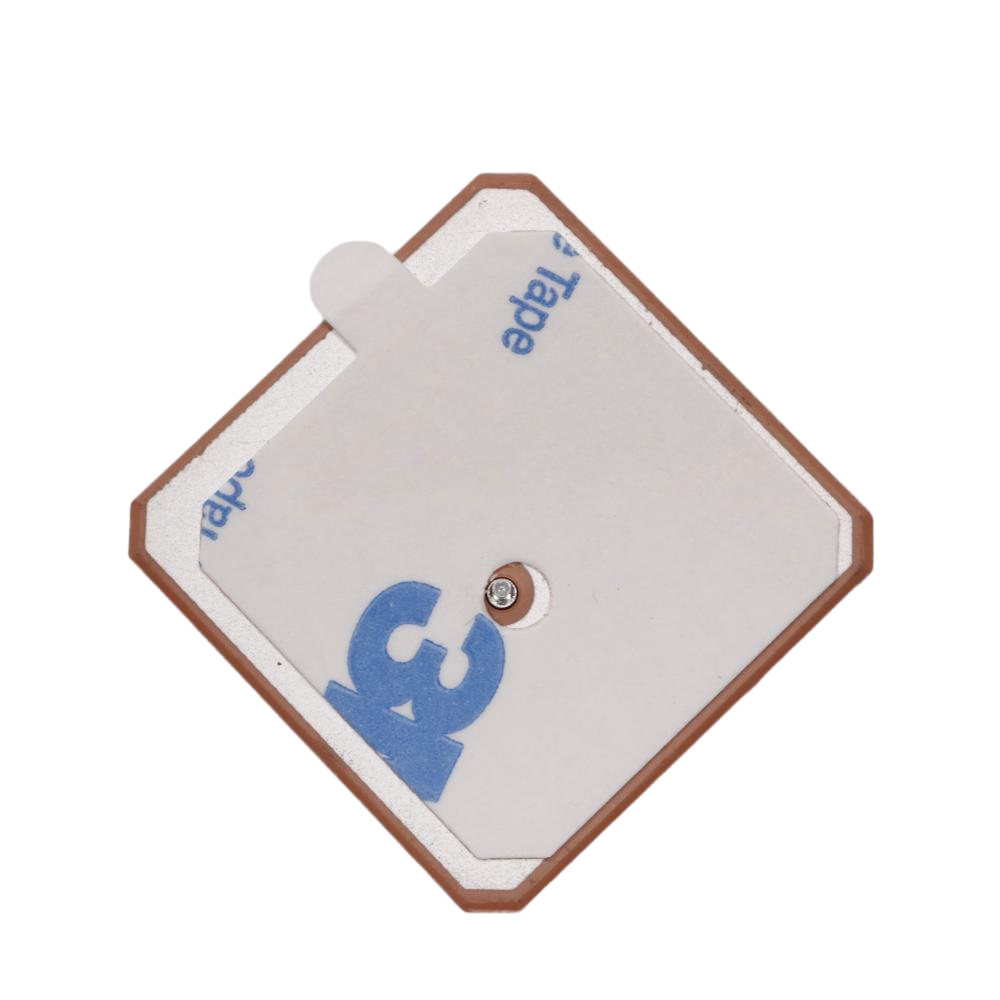

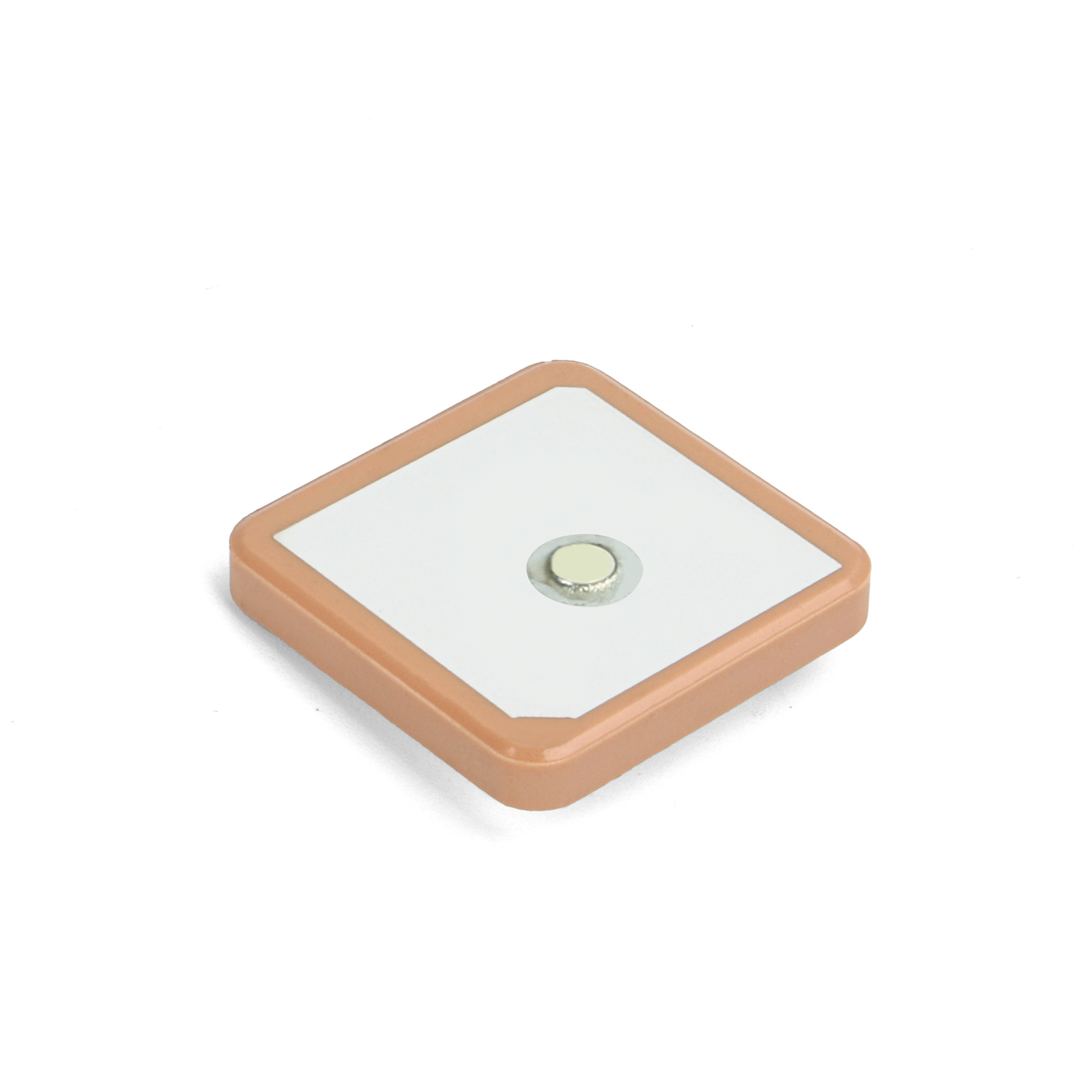

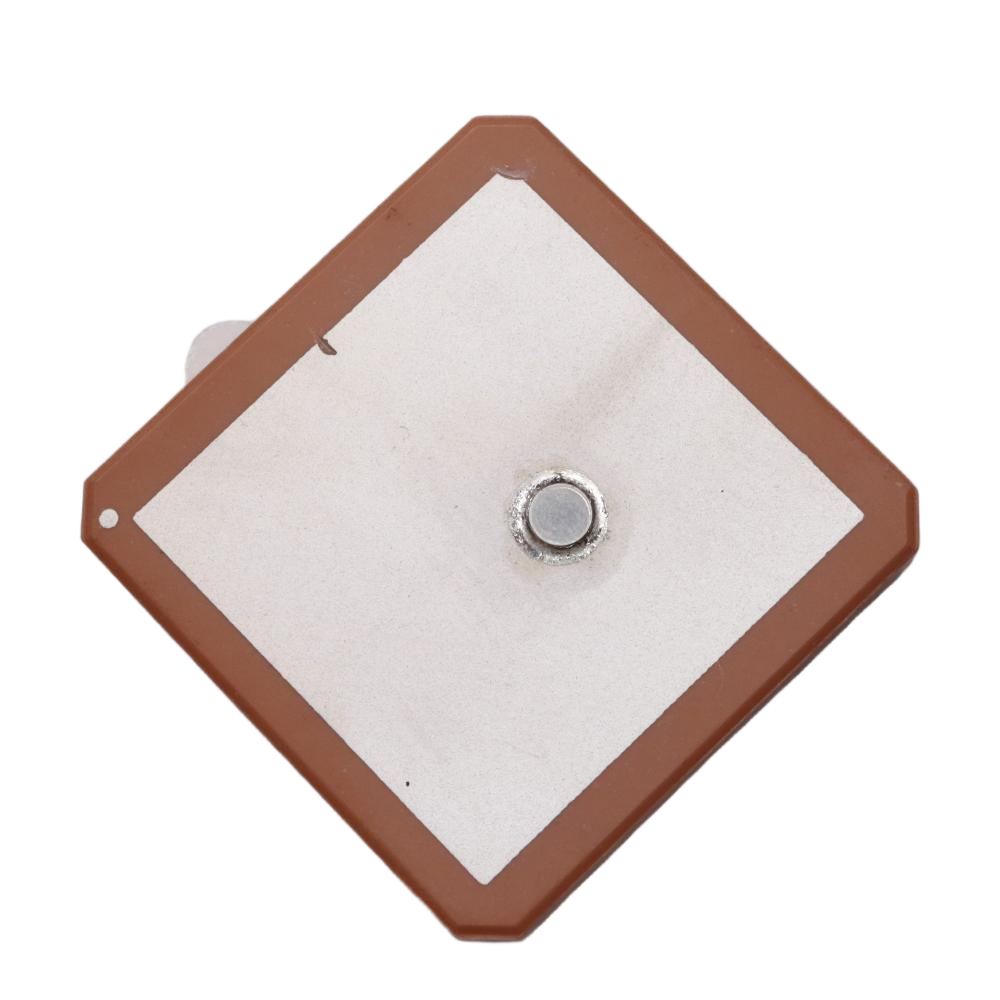

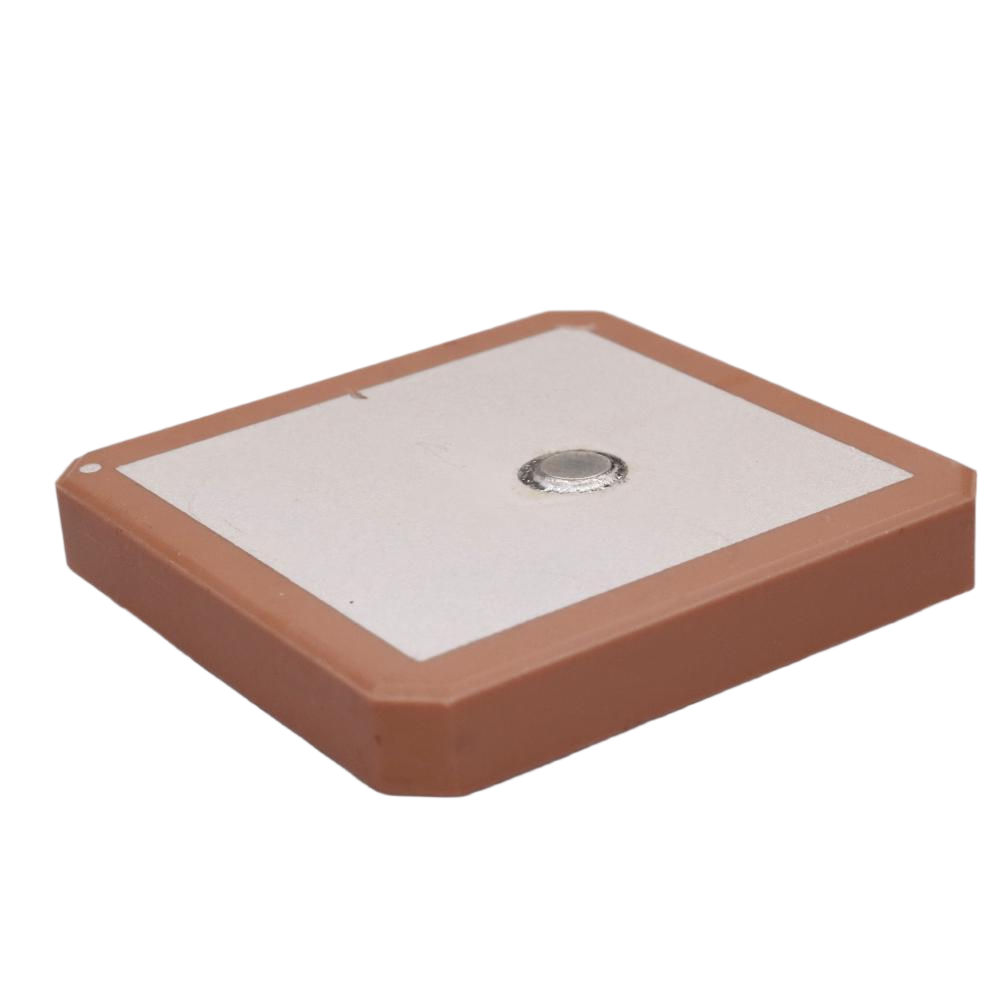

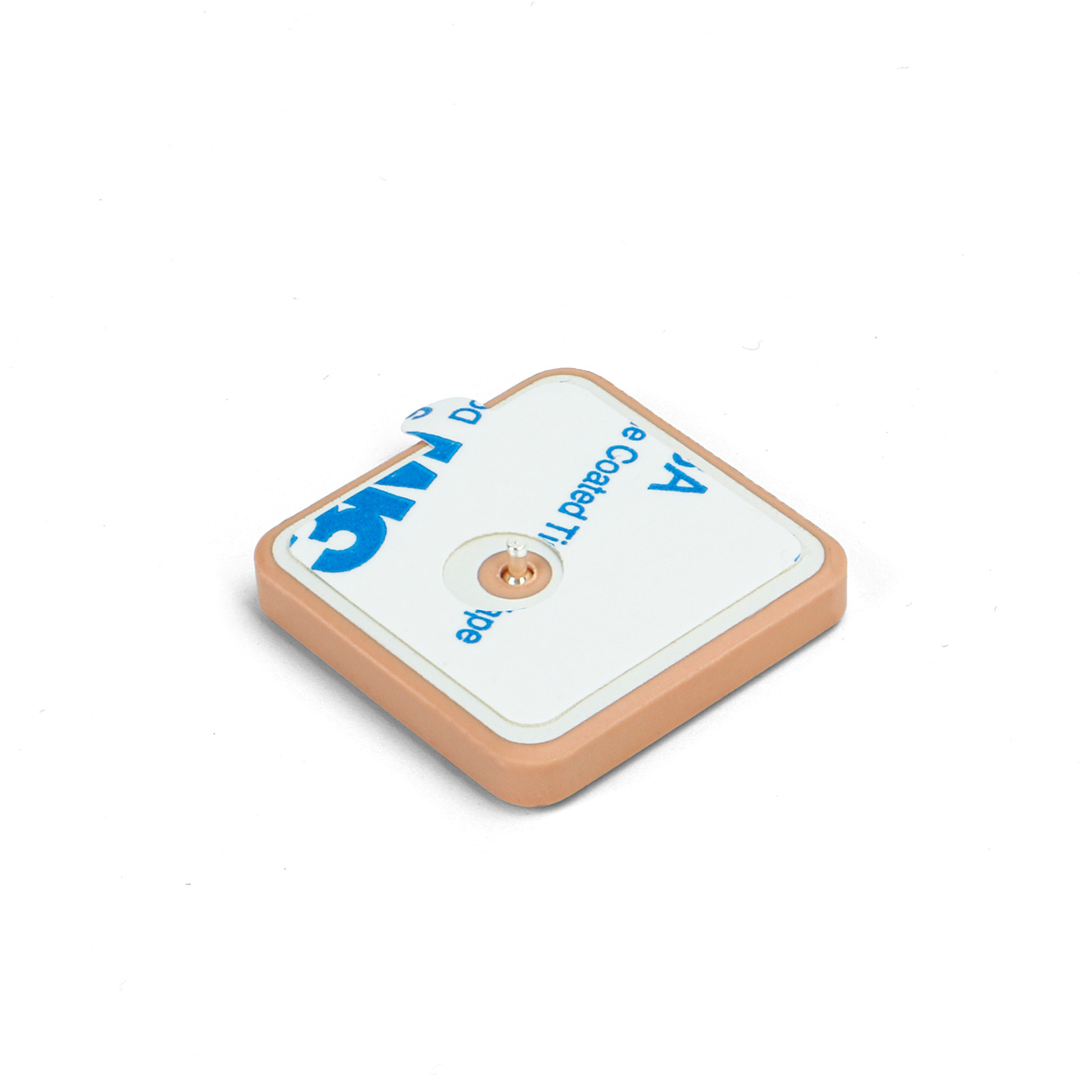

High-performance ceramic antenna, Compact 15mmx15mmx4mm design, ideal for precision positioning systems
Model：BFGNSCNX15X15W4
Specification：
- Frequency：1575±5，1561±5 mHz
- Size：15 x 15 x 4 mm
- Connector：Customizable
- Cable：Customizable
About Products
The BeiDou/GPS dual-band passive ceramic antenna is a miniaturized solution for high-precision positioning, supporting 1575±5MHz (GPS L1) and 1561±5MHz (BeiDou B1) with 360° omnidirectional radiation.
Key Features
- Dual-Band Support: Simultaneous GPS & BeiDou signal reception.
- Ultra-Thin Profile: 15mm×15mm×4mm footprint for space-constrained designs.
- Eco-Compliant: RoHS & REACH certified for global markets.
Technical Advantages
- Passive Design: Zero external power required.
- Omnidirectional Coverage: Ideal for multi-orientation use cases.
- Interference Resistance: Ceramic material minimizes multipath effects.
Applications
- Vehicle Navigation: Cars, drones, and fleet tracking.
- IoT Devices: Wearables, asset monitoring.
- Industrial Surveying: Precision agriculture, construction machinery.
Why Choose Us?
- Military-Grade Durability: Tested under extreme conditions (-40℃~85℃).
- Customization: Frequency/tuning adjustments available.
- Global Logistics: Fast lead times for OEM/ODM projects.
