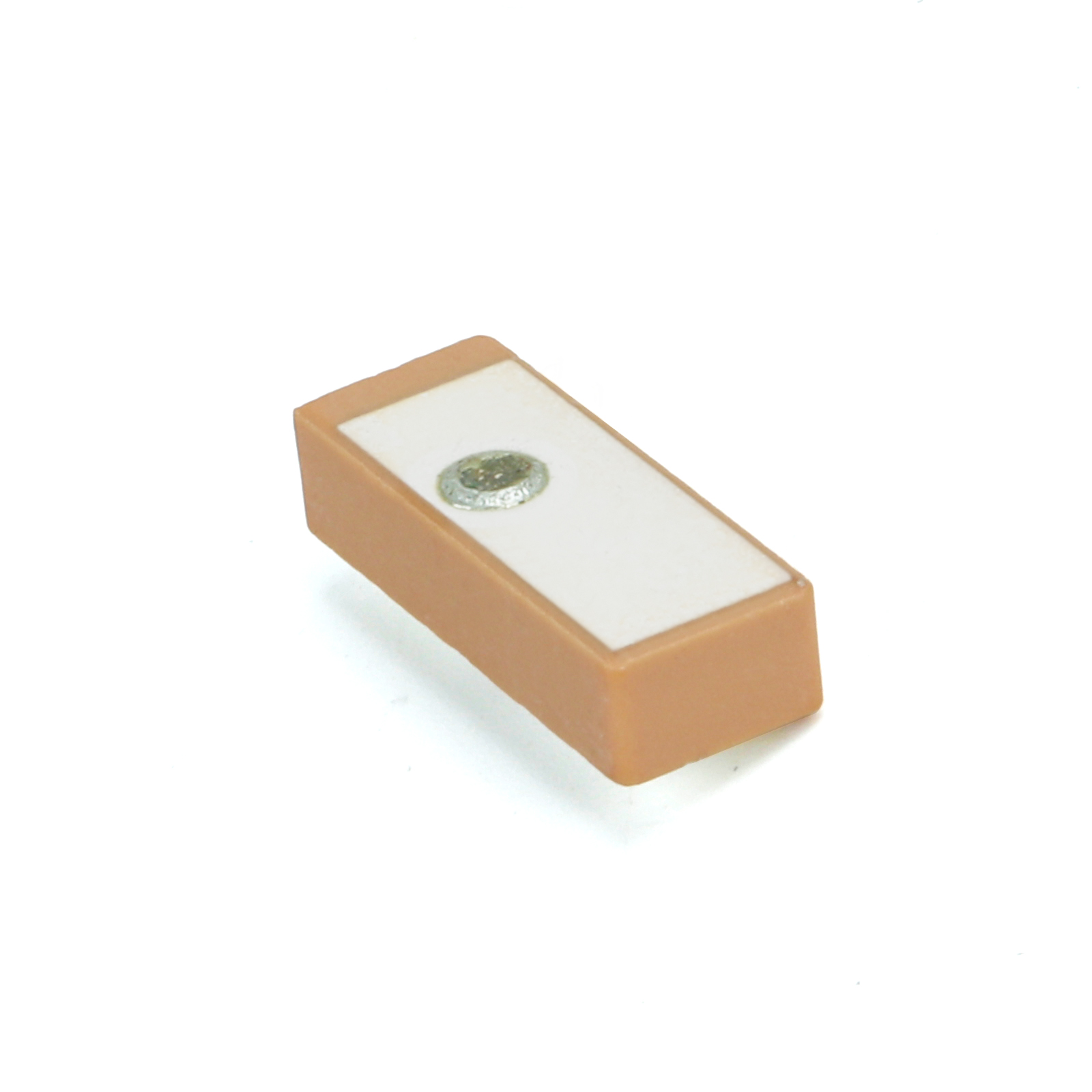

Bat Wireless BFGNSCNX16X6W4 is a ceramic antenna, operating in the 1575 MHz and 1561 MHz frequency bands. It adopts a special ceramic dielectric material to reduce antenna size while maintaining good performance, featuring low dielectric loss and high radiation efficiency. With low loss and high stability, the ceramic dielectric minimizes signal attenuation and ensures excellent temperature stability, making it suitable for in-vehicle, outdoor, and other harsh environments, as well as for low-power applications.

The BeiDou/GPS dual-band passive ceramic antenna is a miniature receiver module designed for high-precision positioning. It supports dual-band signals of 1575±5MHz (GPS L1) and 1561±5MHz (BeiDou B1) with a compact size of 16×6×4mm and 4mm thickness, compliant with RoHS/REACH standards.

‌Key Features‌

• ‌Dual-Band Coverage‌:
• Simultaneously receives GPS L1 (1575MHz) and BeiDou B1 (1561MHz) signals.
• ‌Ultra-Compact Design‌:
• 16×6×4mm dimensions and 4mm thickness for embedded applications.
• ‌Omnidirectional Radiation‌:
• 360° uniform radiation pattern for flexible installation.
• ‌Eco-Friendly‌:
• RoHS/REACH certified, free from lead and cadmium.

‌Advantages‌

• ‌High Sensitivity‌: Ceramic resonator enhances signal reception.
• ‌Low Power Consumption‌: Passive design eliminates external power needs.
• ‌Strong Anti-Interference‌: Precise filtering reduces multipath effects.

‌Applications‌

• ‌Wearable Devices‌:
• Smartwatches and health monitors for accurate positioning.
• ‌Vehicle Navigation‌:
• OEM/aftermarket telematics for location services.
• ‌IoT Devices‌:
• Asset trackers and bike-sharing systems.
• ‌Industrial Equipment‌:
• Drones and agricultural machinery requiring reliable positioning.

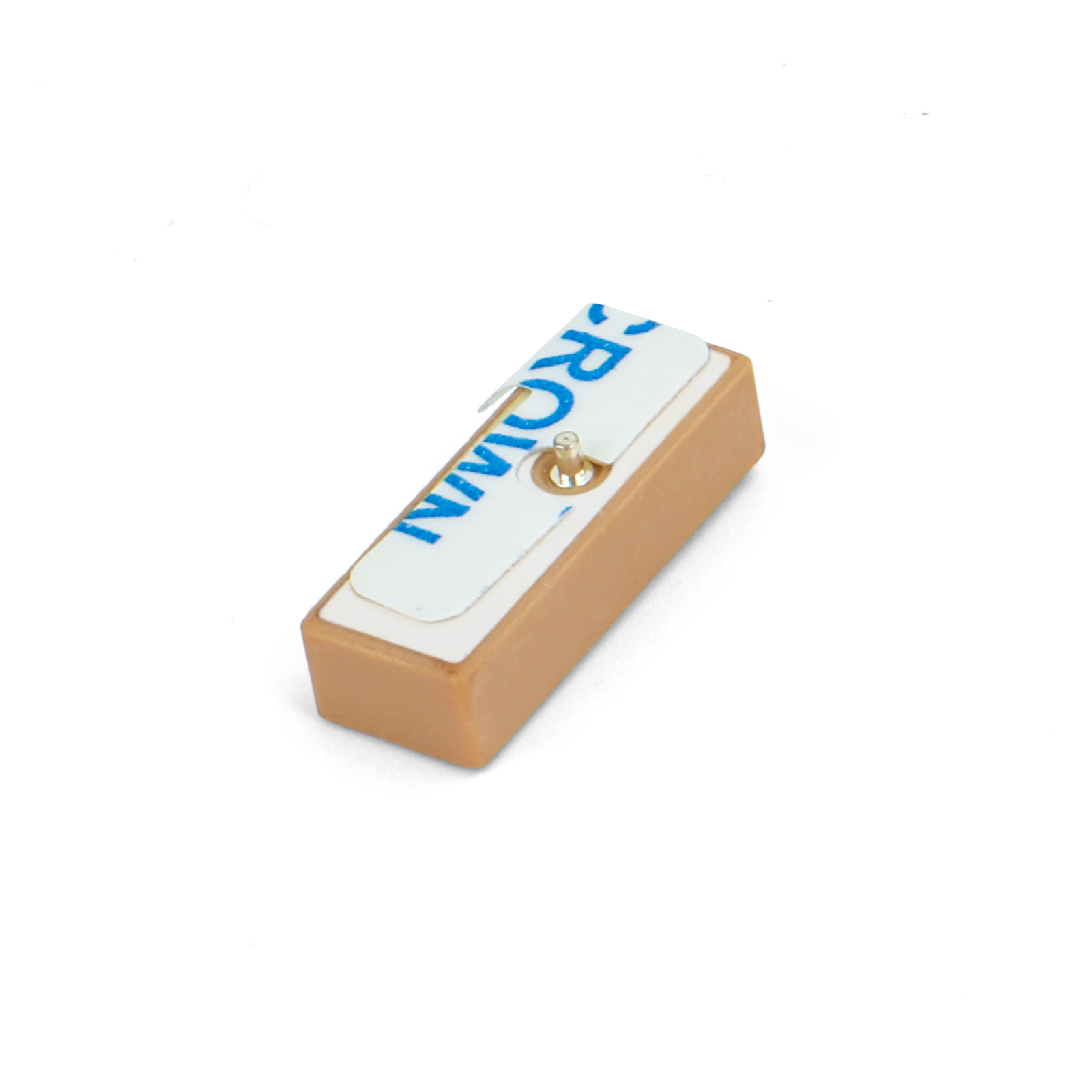

The right-hand circular polarization design matches the polarization mode of BeiDou satellite signals, providing strong anti-multipath interference capability and improving positioning accuracy. It is easy to integrate, typically featuring an ANT connection pin and a ground pin for convenient soldering or modular design.

Classic Application Scenarios:

• Automotive and Transportation: Vehicle navigation systems, commercial fleet management, intelligent transportation facilities
• Consumer Electronics and Portable Devices: Smartphones/tablets, outdoor sports devices, shared-economy devices
• IoT and Asset Tracking: Logistics tracking, agricultural IoT
• Aerospace and Defense: UAVs, satellite communication terminals, military equipment
