The GPS + Dual 4G 3-in-1 Cabinet Antenna (Model: BFP4GBX81X15SJLL2000) is a highly integrated wireless communication component designed for cabinet-mounted devices that require simultaneous GPS positioning and dual 4G data transmission functions. Combining GPS positioning and dual 4G data modules into one compact unit, it eliminates the need for installing three separate antennas, significantly saving internal cabinet space. Equipped with two 4G male connectors and one GNSS male connector, paired with a 2000mm RG174 cable, the antenna supports flexible wiring inside industrial control cabinets, IoT gateways, and vehicle-mounted terminal cabinets. Featuring a 360° omnidirectional radiation pattern and a slim size of 81×15mm, it delivers uniform signal coverage for GPS positioning and 4G data transmission, ensuring stable operation even in complex electromagnetic environments. Fully compliant with RoHS and REACH regulations, it meets global market environmental standards for cross-border deployment.

Core Specifications

This 3-in-1 cabinet antenna adopts the model number BFP4GBX81X15SJLL2000, integrating GPS positioning and dual 4G data transmission functions in a single component. It is equipped with two standard 4G male connectors for dual 4G signal transmission, enabling redundant backup of data channels to ensure uninterrupted communication, and one GNSS male connector for high-precision GPS positioning signal reception. The antenna is paired with a 2000mm RG174 cable that has excellent shielding performance, effectively reducing electromagnetic interference from other devices inside the cabinet during signal transmission. Its radiation pattern is 360° omnidirectional, guaranteeing that GPS positioning signals and 4G data signals can be stably transmitted and received in all directions around the cabinet, eliminating coverage blind spots. The product dimensions are 81×15mm, with a slim and compact structure that can be easily fixed on cabinet inner walls or equipment brackets, suitable for long-term stable operation in industrial environments. It strictly complies with RoHS and REACH environmental regulations, containing no restricted harmful substances.

Product Features

1. 3-in-1 Integrated Design: Combines GPS positioning and dual 4G data transmission functions into one antenna, replacing three separate antennas to save cabinet space and simplify installation procedures for integrated terminal devices.
2. Dual 4G Redundant Backup: Equipped with two 4G male connectors to support dual-channel 4G data transmission, realizing signal redundancy backup to avoid communication interruption caused by single-channel failure, suitable for mission-critical scenarios.
3. 360° Omnidirectional Radiation: The omnidirectional design ensures uniform coverage of GPS and 4G signals in all directions, maintaining stable positioning accuracy and data transmission speed regardless of the cabinet's installation orientation.
4. 2000mm Flexible RG174 Cable: The 2-meter-long cable provides sufficient wiring length for medium-sized cabinets, allowing the antenna to be installed in the optimal signal position away from internal interference sources such as power supplies and circuit boards.

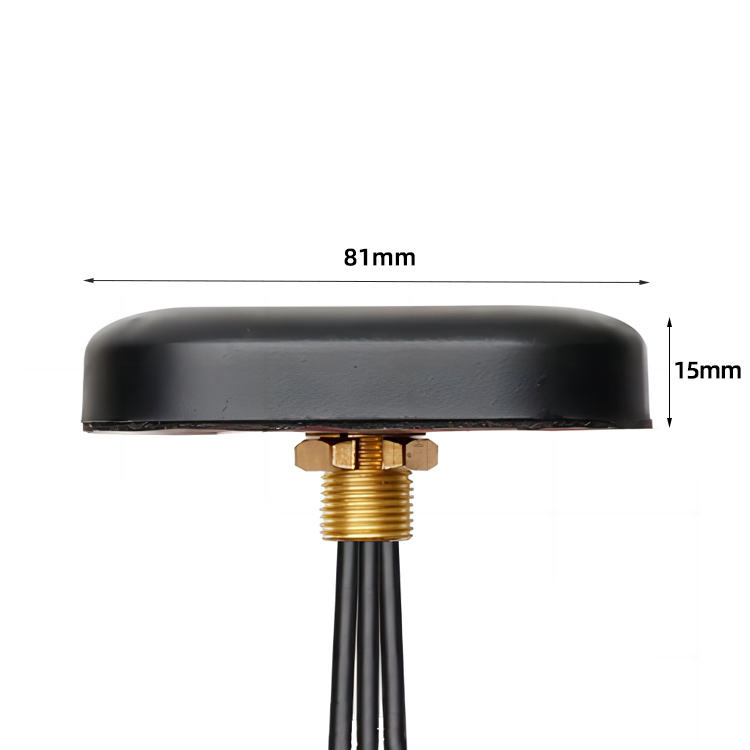

5. Slim Cabinet-Friendly Structure: With a size of 81×15mm, the slim profile fits seamlessly into narrow cabinet spaces, avoiding conflicts with other modules and optimizing the overall space utilization of the cabinet.
6. Global Environmental Compliance: Fully compliant with RoHS and REACH regulations, meeting the environmental requirements of European, American, and other global markets, facilitating cross-border sales and project implementation.

Application Scenarios

This GPS + Dual 4G 3-in-1 Cabinet Antenna is widely applicable to integrated cabinet devices that require both positioning and dual-channel data transmission, including but not limited to industrial IoT gateways, vehicle-mounted monitoring control cabinets, smart grid terminal cabinets, logistics scheduling terminal cabinets, and urban public facility management cabinets. It is especially suitable for scenarios such as fleet management, power grid remote monitoring, and outdoor mobile communication, providing reliable dual 4G data transmission and GPS positioning support for device operation.
