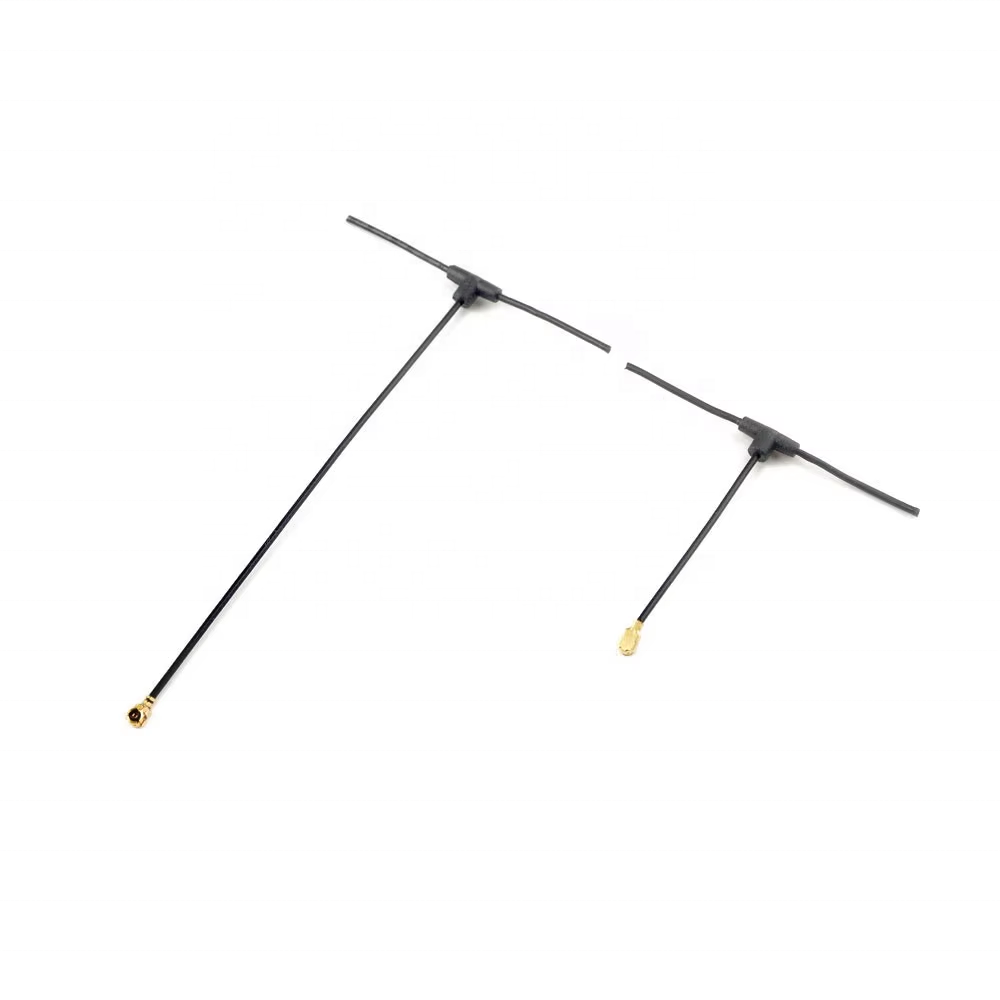

The 2.4G Dipole Antenna (Model: BF2.4YWX59X85B1L85) is a high-efficiency wireless communication component engineered for 2400-2500MHz frequency band applications. It comes equipped with an IPEX first generation connector and an 85mm-long 1.37 specification cable, ensuring seamless integration and stable signal transmission for compact wireless devices. As a classic dipole-structured antenna, it delivers balanced radiation performance and low signal attenuation, making it ideal for small-sized IoT modules, wireless sensors and embedded communication devices. Compliant with international RoHS and REACH regulations, this antenna meets global environmental standards and supports cross-border market deployment.

Core Specifications

This 2.4G dipole antenna bears the model number BF2.4YWX59X85B1L85, with a working frequency range covering 2400-2500MHz to achieve full-band 2.4G wireless communication without signal blind spots. It adopts an IPEX first generation connector, which is widely compatible with mainstream small wireless device interfaces for easy plug-and-play installation. The antenna is paired with a 1.37 specification cable of 85mm length, perfectly fitting the internal wiring space of compact equipment. Its radiation pattern is 360° omnidirectional, guaranteeing uniform signal coverage in all directions. With dimensions of 59 mm × 13 mm, the antenna features a slim and compact design that can be easily embedded into device casings without occupying excessive space. It strictly complies with RoHS and REACH regulations, containing no restricted harmful substances.

Product Features

1. 2400-2500MHz Full-Band Coverage: The antenna covers the entire 2.4G frequency band, ensuring stable signal transmission for various 2.4G wireless protocols, and effectively avoiding signal interruption caused by frequency drift.
2. IPEX First Generation Connector: The standard IPEX first generation interface has strong compatibility with small-sized wireless modules, realizing fast connection and disconnection, and reducing assembly difficulty for device manufacturers.
3. 85mm 1.37 Customized Cable: The 1.37 specification cable with 85mm length is tailor-made for compact devices, featuring good flexibility and shielding performance, which can minimize signal loss during transmission and adapt to internal wiring constraints of equipment.
4. 360° Omnidirectional Radiation: The dipole structure supports 360° omnidirectional signal radiation, ensuring that the device can maintain stable communication regardless of its placement angle, suitable for scenarios where the device orientation is variable.
5. Compact & Space-Saving Design: With a slim size of 59×13mm, the antenna can be seamlessly integrated into embedded devices such as IoT sensors and wireless communication modules, without increasing the overall volume of the end product.
6. Global Environmental Compliance: Fully meeting RoHS and REACH regulatory requirements, the antenna eliminates environmental certification barriers for export to European, American and other global markets, facilitating cross-border trade.

Application Scenarios

This 2.4G dipole antenna is widely applicable to small and medium-sized 2.4G wireless communication devices, including but not limited to IoT sensor modules, embedded wireless communication boards, smart home control chips, portable Bluetooth devices and wireless data transmission terminals. It is especially suitable for scenarios that require embedded installation and stable omnidirectional signal coverage, such as smart home systems, industrial IoT monitoring, wearable devices and wireless meter reading equipment.
