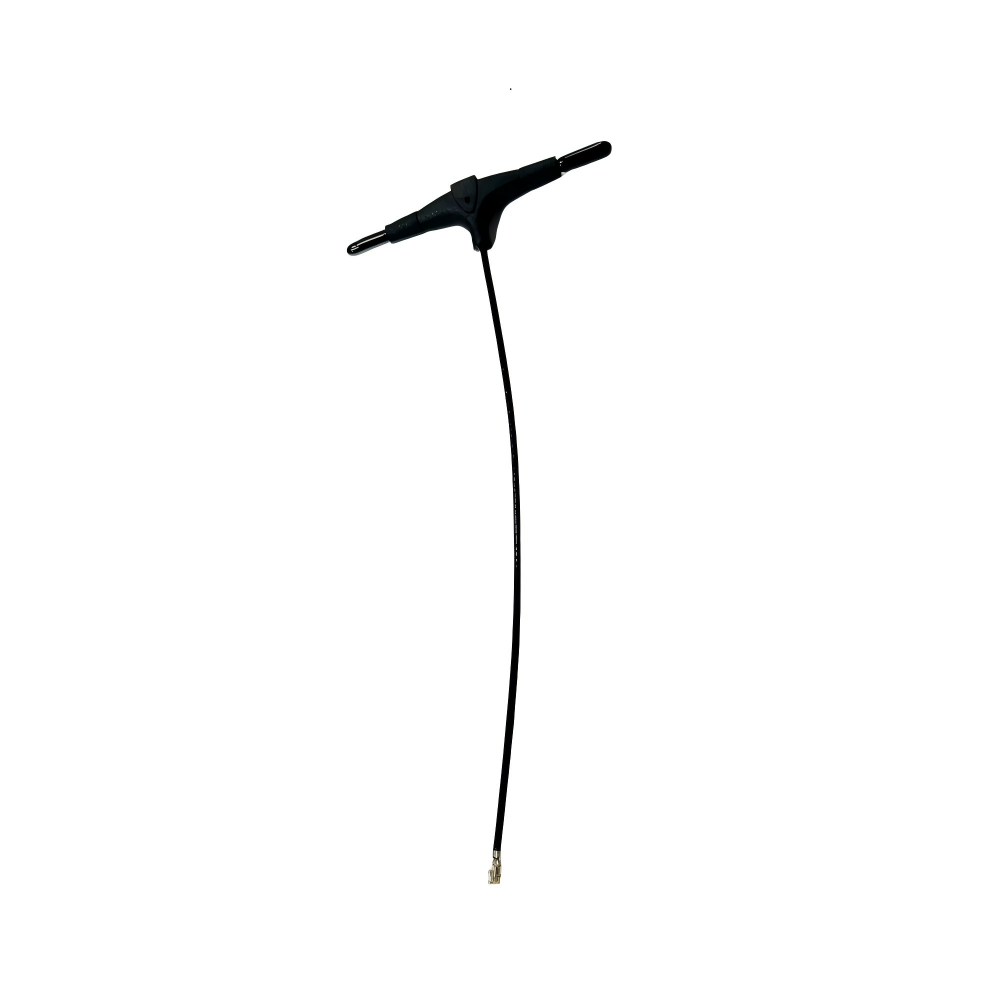

High-gain 2.4GHz omnidirectional sheep horn antenna for FPV drones, 2400-2500MHz full-band coverage

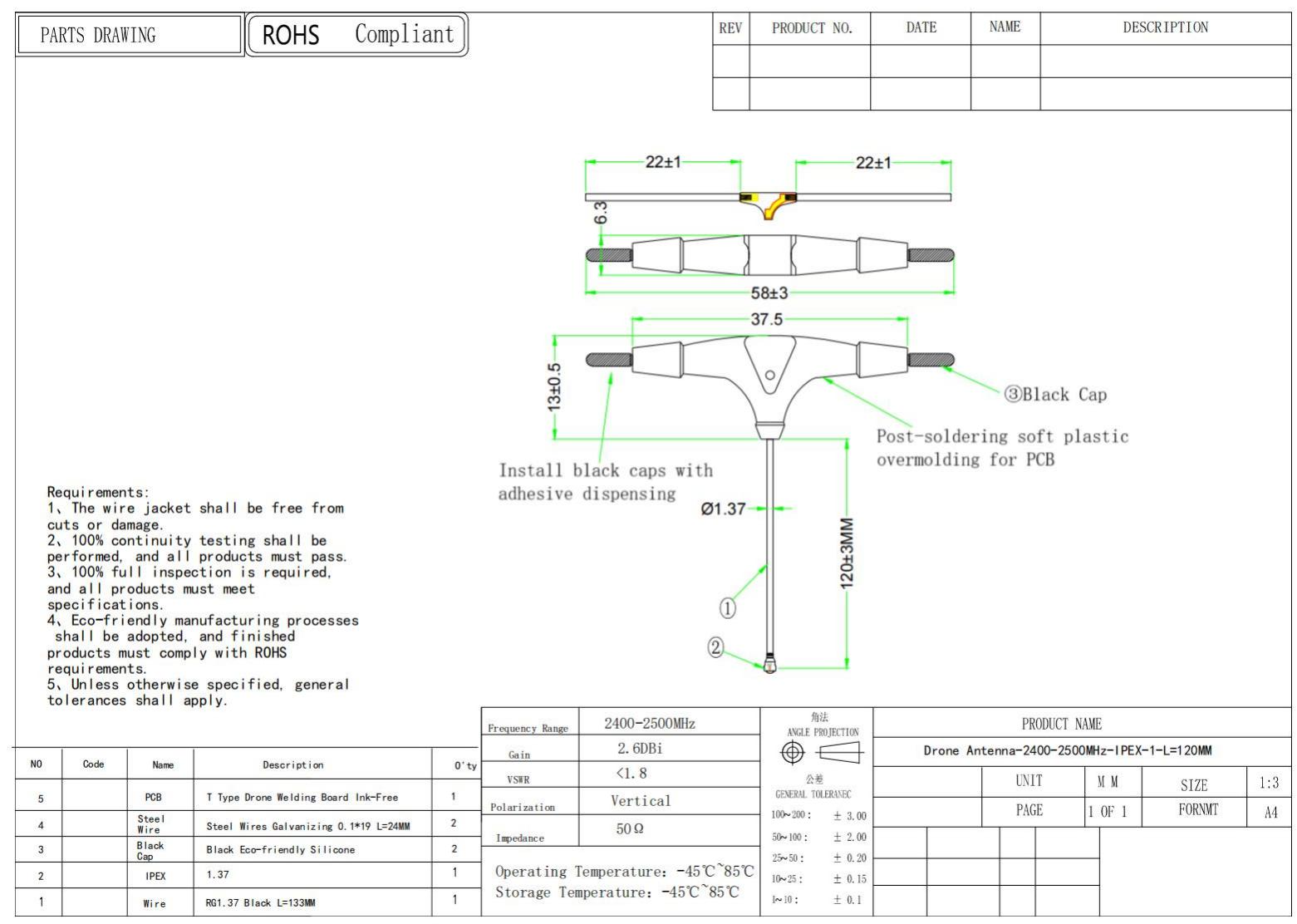

Model：BF2.4YWX58X38B1L120
Specification：
- Frequency：2400-2500MHz
- Size：58mm x 13mm
- Connector：IPEX-1（Customizable）
- Cable：RG1.37 120mm（Customizable）
About Products
Bat Wireless BF2.4YWX58X38B1L120 is a high-performance omnidirectional antenna operating in the frequency band around 2.4GHz (belonging to the L-band). It has strong penetration and diffraction capabilities, making it suitable for complex environments (such as cities and forests). With 360° coverage, it is ideal for remote control signal transmission. The 2.4GHz frequency band has fewer devices, resulting in stronger anti-interference ability. It features excellent signal receiving and transmitting capabilities, providing stable and reliable support for device connection. Its compact and lightweight design allows for easy installation, transportation, and carrying.
2.4G Omnidirectional Sheep Horn Antenna – Reliable Connectivity for FPV Drones
Key Features
- 360° Radiation Pattern: Dual-horn design ensures stable connection during aerial maneuvers
- Premium Cable: 120mm RG1.37 low-loss coaxial cable (50Ω impedance) minimizes signal attenuation
- Broadband Coverage: 2400-2500MHz full frequency band compatibility
- Military-Grade Connector: IPEX-1 connector with 500+ mating cycles
Competitive Advantages
- Racing-Tuned: Compact 55x13mm design reduces aerodynamic drag
- Extreme Durability: Operates reliably from -40℃ to 85℃
- Global Compliance: RoHS/REACH certified, halogen-free materials
Applications
- FPV Racing Drones: Low-latency video transmission for 50km/h+ speeds
- Industrial Inspection: EMI-resistant for power line monitoring
- Aerial Live Streaming: Enhanced signal penetration in urban canyons
