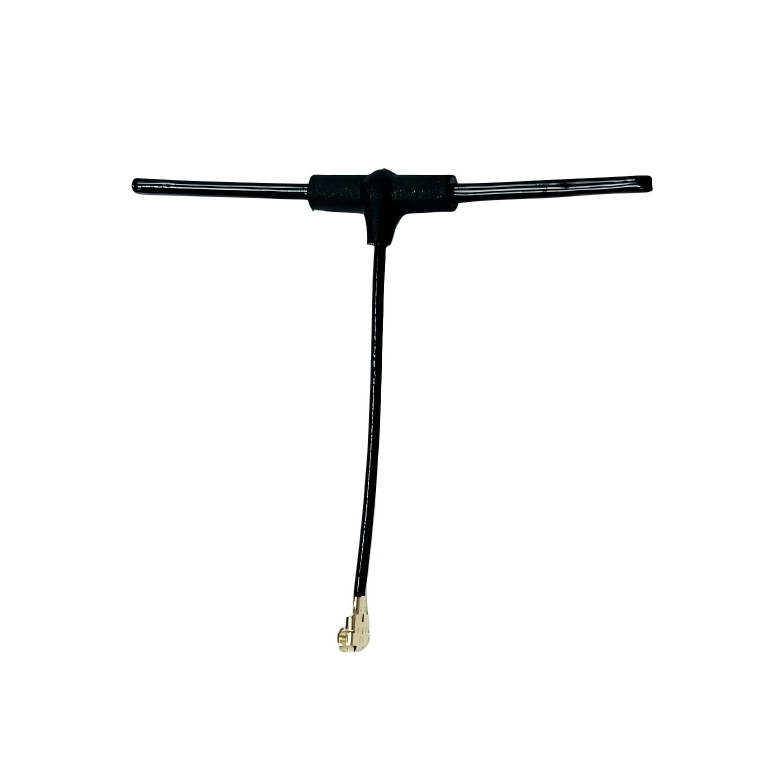

2.4GHz omni sheep horn antenna with 40mm RG1.13 cable 2400-2500MHz full-band coverage
Model：BF2.4YWX55X15B1L40
Specification：
- Frequency：2400-2500MHz

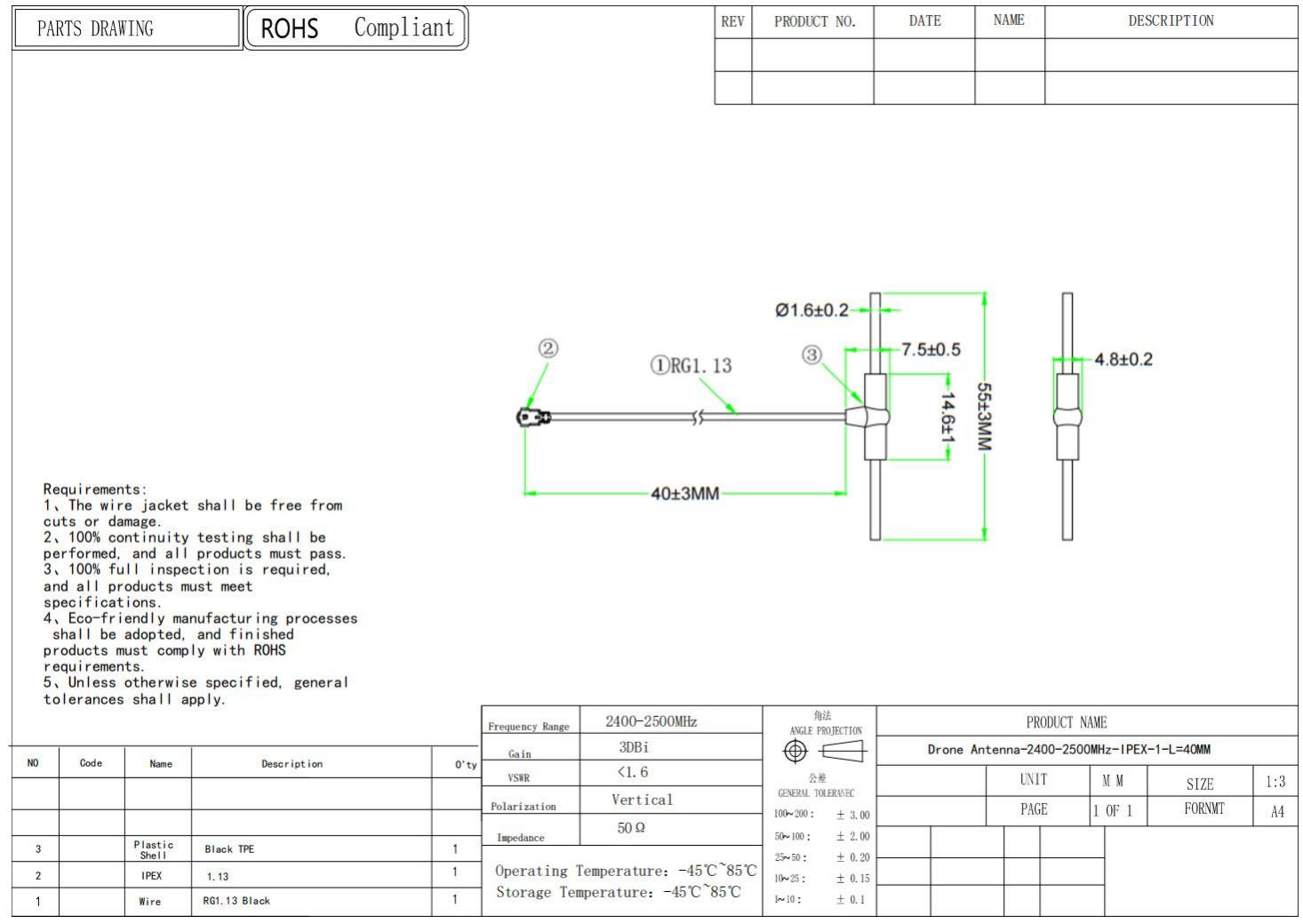

- Size：55mm x 7.5mm
- Connector：IPEX-1（Customizable）
- Cable：RG1.13 40mm（Customizable）
About Products
Bat Wireless BF2.4YWX55X15B1L40 is a high-performance omnidirectional antenna operating in the frequency band around 2.4GHz (belonging to the L-band). It has strong penetration and diffraction capabilities, making it suitable for complex environments (such as cities and forests). With 360° coverage, it is ideal for remote control signal transmission. The 2.4GHz frequency band has fewer devices, resulting in stronger anti-interference ability. It features excellent signal receiving and transmitting capabilities, providing stable and reliable support for device connection. Its compact and lightweight design allows for easy installation, transportation, and carrying.
2.4G Omnidirectional Antenna – Ultra-Compact Solution for FPV Racing
Key Features
- Short-Cable Design: 40mm RG1.13 cable minimizes phase distortion for micro drones
- Omnidirectional Gain: 55x7.5mm sheep horn structure boosts 360° coverage (2400-2500MHz)
- Military Connector: IPEX-1 withstands 10,000+ mating cycles in vibration
- Space Saving: 7.5mm thickness fits nano-class UAVs
Competitive Advantages
- Racing Performance: Optimized for <20ms latency within 200m range
- Size Reduction: 40% smaller than standard antennas
- Extreme Conditions: Operates from -30℃ to 80℃
Applications
- FPV Racing: Stable transmission at 50km/h
- Micro UAVs: Ideal for palm-sized drones
- Indoor Flying: Enhanced coverage in warehouses
