Bat Wireless BF1.2GYWX88X6SL100 is a high-performance omnidirectional antenna operating in the frequency band around 1.2GHz (belonging to the L-band). It has strong penetration and diffraction capabilities, making it suitable for complex environments (such as cities and forests). With 360° coverage, it is ideal for remote control signal transmission. The 1.2GHz frequency band has fewer devices, resulting in stronger anti-interference ability. It features excellent signal receiving and transmitting capabilities, providing stable and reliable support for device connection. Its compact and lightweight design allows for easy installation, transportation, and carrying.

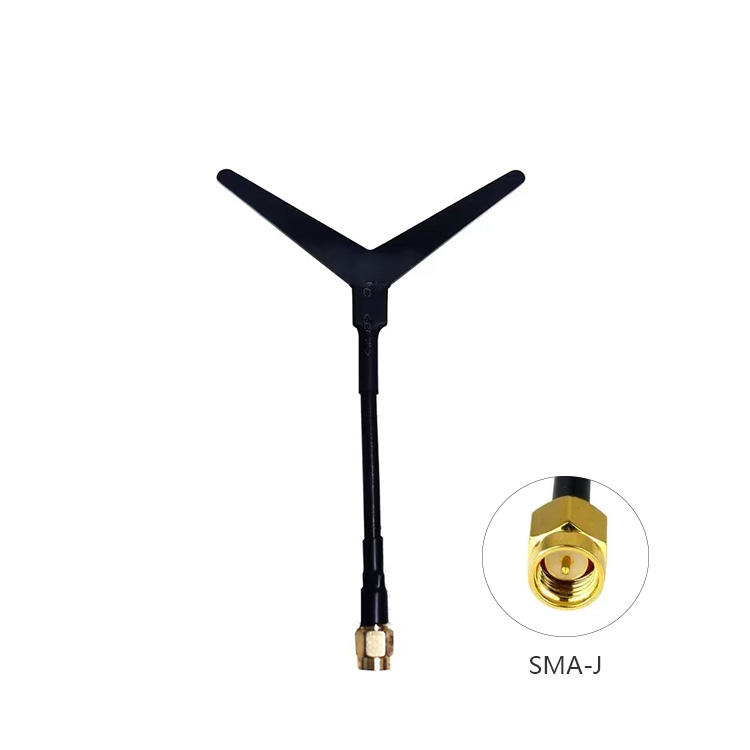

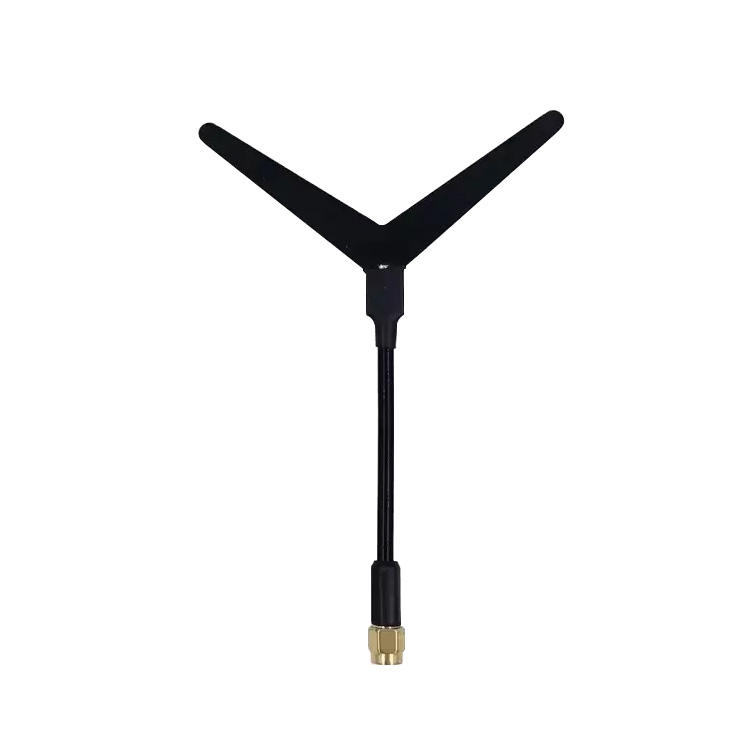

1.2G Omnidirectional Y-Antenna – Enhanced FPV Signal Penetration

Key Features

• Dual-band design: 1100-1300MHz full coverage with 40% better penetration
• Military-grade cable: 100mm RG141 (±2° phase stability)
• Omnidirectional gain: 5dBi in 360° radiation pattern
• SMA connector: IP67 rating, 20G vibration resistance

Technical Benefits

• Racing optimized:
• 100mm cable reduces latency (<15μs)
• Supports 200km/h+ drone speeds
• Harsh environments:
• 30% less signal loss in urban areas
• Operates -40℃~85℃
• Compliance:
• CE/FCC certified, RoHS/REACH compliant

Applications

• FPV racing: Overcomes signal blocking at 1.2GHz
• Industrial inspection: Stable in metal-rich environments
• Agricultural drones: Resists multipath interference
