Core Product Features: Multi-Cellular Standard Coverage, Flexible & Customizable Integration

1. Electrical Characteristics: Multi-Band Compatibility, Efficient & Stable Cellular Communication

• 700-2200MHz Full Cellular Band Coverage: Precisely covers the 700-2200MHz mainstream cellular communication bands, compatible with 2G, 3G, and 4G multi-standard networks. It serves as the core communication component for "one antenna, multiple networks" in cellular terminals and communication modules, enabling adaptation to different generations of cellular technologies without replacing the antenna, significantly simplifying the frequency band adaptation complexity of terminal equipment, and meeting full-scenario communication needs from 2G voice to 4G high-speed data.
• Moderate Gain + Controllable VSWR, Ensure Communication Reliability: With a gain of 2dBi and vertical polarization design, it maintains stable signal radiation performance in multi-band communication; Voltage Standing Wave Ratio (V.S.W.R) is <4.3, combined with 50Ω standard input impedance to effectively control signal reflection loss, ensuring "low-latency, high-reliability" data transmission for cellular devices in scenarios such as 2G (remote area coverage) and 4G (urban high-speed data).
• 50W Power Capacity, Adapt to Multi-Device Concurrency: With a power capacity of 50W, it supports high-power signal transmission of cellular communication modules and IoT terminals. Even in scenarios such as multi-user concurrency (e.g., 4G users surfing the Internet simultaneously in dense urban areas) and data backhaul from industrial cellular sensing nodes, it can ensure the continuity and stability of signal transmission, meeting the "high bandwidth, high concurrency" communication requirements of cellular networks.

2. Mechanical Characteristics: FPC Flexible Design, Full-Dimensional Customization

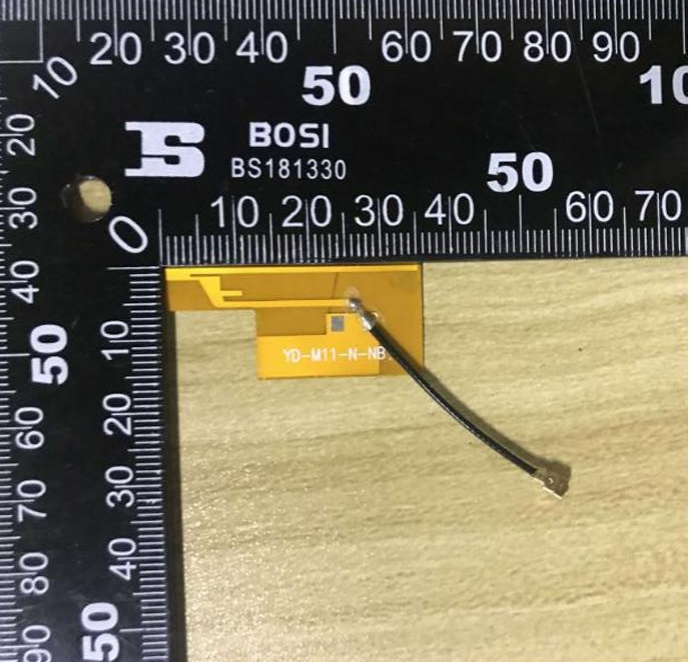

• FPC Flexible Material, Extreme Space Integration: Adopting Flexible Printed Circuit (FPC) material, the overall dimension is only 35×15mm, and the weight is only 0.17g, as thin as paper and can be bent and folded. It is perfectly suitable for devices with extremely limited space such as smartphone modules, industrial cellular sensors, and vehicle-mounted communication terminals, solving the industry pain point of traditional cellular antennas being "space-consuming and difficult to integrate", and helping devices achieve "thin and light, miniaturized" design breakthroughs.
• Full-Link Customization, Precisely Match Terminal Requirements: Connector type IPEX-1 (customizable), cable type RG1.13 (customizable), cable length 45mm (customizable), all links from connector to cable to length support personalized customization; crimp connection method, yellow FPC appearance adapts to various device design styles, meeting the "differentiated integration needs" of mobile modules, industrial cellular terminals, and consumer electronics, greatly improving product adaptability and design flexibility.

3. Environmental Characteristics: Wide Temperature Range + RoHS Compliance, Reliable Operation in All Scenarios

• -45~+85℃ Ultra-Wide Temperature Range: It can work stably in extreme environments such as extreme cold (e.g., northern winter -40℃) and high temperature (e.g., industrial workshop +80℃) without additional temperature control measures. It is an "environment-unrestricted" communication component for industrial cellular IoT terminals and outdoor communication equipment.
• RoHS Compliance, Global Market Access Without Barriers: Strictly complies with RoHS environmental regulations, free of harmful substances, meeting the global environmental access requirements for cellular terminals and communication equipment, eliminating compliance barriers in international trade, and helping products quickly enter global cellular communication markets such as Europe, America, and Asia-Pacific.

Core Advantages: Multi-Standard Empowerment, Customization Flexibility to Explore Cellular Ecosystem

1. Multi-Cellular Band Compatibility, Simplify Terminal Equipment Architecture: A single antenna covers the entire 700-2200MHz cellular band, reducing the number of antennas required for terminals, lowering equipment procurement, R&D, and maintenance costs. It is especially suitable for the "multi-standard compatible product" needs of cellular module manufacturers and IoT solution providers, shortening the product launch cycle.
2. FPC Flexibility + Full Customization, Leading Integration Efficiency: FPC material can be bent and folded, adapting to various special-shaped device structures; connectors, cables, and lengths are fully customizable, perfectly matching the "interface, electrical, and space" personalized needs of different cellular terminals, solving the pain points of traditional cellular antennas being "difficult to integrate and poorly adaptable", and accelerating the R&D and mass production cycles of cellular terminals.
3. Moderate Gain + Wide Temperature Range, Full-Scenario Coverage Without Dead Ends: 2dBi gain adapts to the communication needs of multi-cellular scenarios, VSWR <4.3 ensures signal transmission efficiency, and the -45~+85℃ wide temperature range adapts to all scenarios from consumer electronics (mobile modules) to industrial equipment (cellular sensors), from indoor to outdoor, expanding the application boundaries of cellular communication technology.

Multi-Industry Application Scenarios: Covering All Terminal Needs of Cellular Communication

1. Cellular Terminal Modules: Communication Core of Mobile and IoT, Compatible with 2G/3G/4G communication modules and wireless data transmission modules, the thin and light FPC design does not occupy the internal space of the module; the multi-band compatibility feature allows the module to support 2G (backup communication) and 4G (main communication) simultaneously, improving the network adaptability and reliability of the module, and helping the communication module in large-scale applications such as smartwatches and industrial routers.
2. Industrial Cellular Sensing: Equipment Interconnection and Remote Management, Matched with industrial cellular sensors (such as smart grid monitoring nodes and industrial equipment status sensors), the yellow FPC antenna can be integrated at the edge of the equipment; the -45~+85℃ wide temperature range adapts to high and low temperature working conditions in industrial workshops, and the 50W power capacity supports cellular data interconnection of dense equipment in the workshop, helping industrial equipment achieve "real-time status monitoring and remote intelligent control", and promoting the intelligent upgrade of industrial cellular IoT.
3. Consumer Electronics: Cellular Communication Extension for Thin & Light Devices, In consumer electronics such as wearable devices and smart home hubs, the thin and light characteristics of the FPC antenna can be hidden and integrated inside the device; multi-band compatibility ensures the cellular network connection of the device (such as remote communication of smart home hubs), and customizable connectors adapt to the personalized design of the device, enhancing the "intelligent, interconnected" experience of consumer electronics.
4. Vehicle-Mounted Communication: Full-Standard Network Connection for Vehicles, Compatible with vehicle-mounted T-BOX and vehicle-mounted communication modules, the FPC flexible design can fit the special-shaped structure of vehicle-mounted equipment; 700-2200MHz multi-band coverage supports stable communication of vehicles in different network environments such as 2G (remote sections) and 4G (urban highways), ensuring the "all-weather, all-region" reliable operation of functions such as vehicle navigation and remote diagnosis.
