The 5G Logarithmic Cycle Antenna (Model: BFX5GDWX290X190SJL3000) is a high-performance wideband wireless communication component engineered for long-distance 5G network deployment scenarios. Designed with a professional logarithmic cycle structure, it supports ultra-wide frequency band coverage of 700-3800MHz, perfectly matching all mainstream 5G FR1 sub-bands and backward compatible with 4G/3G signals. Equipped with an SMA male straight connector and a 3000mm RG58 cable, it ensures stable signal transmission and flexible installation for outdoor base stations, industrial IoT gateways, and 5G point-to-point communication equipment. Featuring a directional radiation pattern and a compact size of 290×190×50mm, the antenna concentrates signal energy in a specific direction, delivering high-gain, long-distance signal transmission performance, which is far superior to omnidirectional antennas in targeted coverage scenarios. With its rugged, weather-resistant design and full compliance with RoHS and REACH regulations, it is ideal for long-term outdoor 5G network construction and operation.

Core Specifications

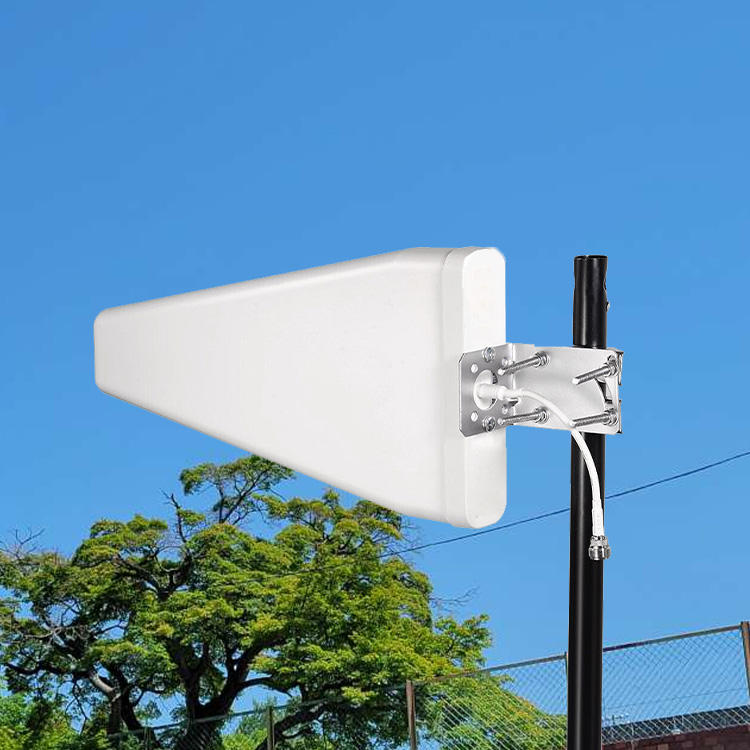

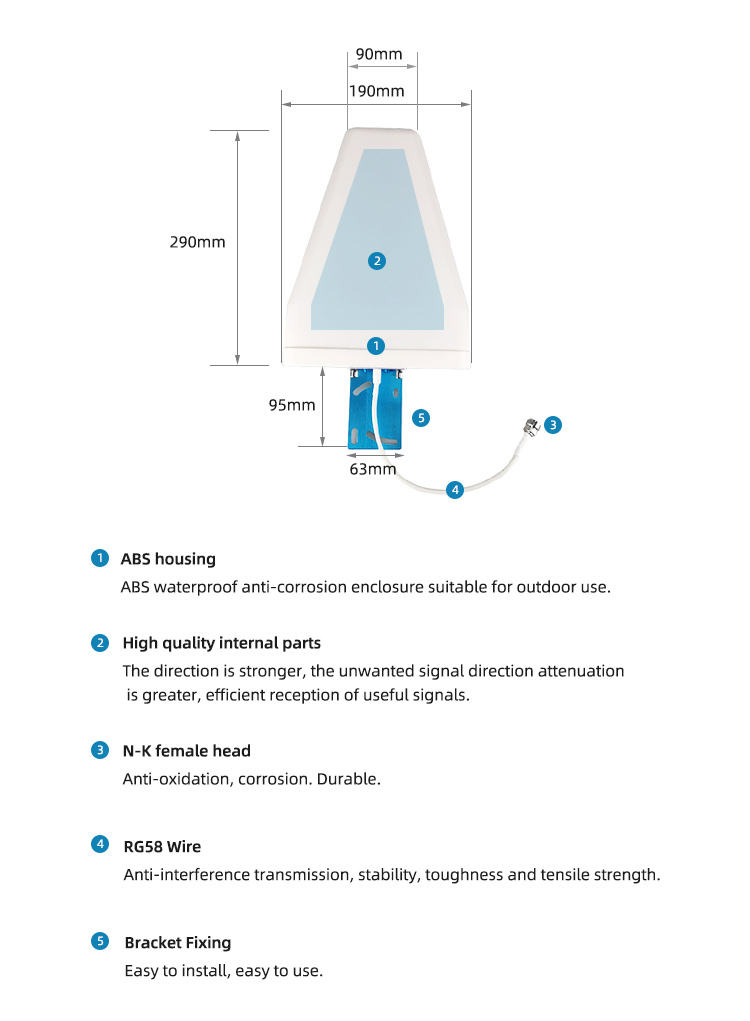

This 5G logarithmic cycle antenna adopts the model number BFX5GDWX290X190SJL3000, with an ultra-wide working frequency range of 700-3800MHz, covering all 5G FR1 frequency bands and supporting multi-standard wireless communication. It is fitted with a standard SMA male straight connector, which has strong compatibility with 5G base station modules, signal amplifiers, and wireless routers, ensuring a tight and vibration-resistant connection to minimize signal loss. The antenna is paired with a 3000mm RG58 cable that boasts excellent shielding performance and low signal attenuation, effectively reducing external electromagnetic interference during long-distance signal transmission. Its radiation pattern is directional, focusing signal energy in a fixed angle range to maximize signal gain and transmission distance, making it suitable for point-to-point 5G signal transmission and targeted area coverage. The product dimensions are 290×190×50mm, with a lightweight and integrated structure that can be easily mounted on walls, poles, or equipment cabinets with angle adjustment brackets. It strictly complies with RoHS and REACH environmental regulations, containing no restricted harmful substances.

Product Features

1. 700-3800MHz Ultra-Wide Band Coverage: Covers all 5G FR1 sub-bands and is backward compatible with 4G/3G signals, meeting diverse 5G network deployment needs without replacing antennas for different frequency bands.
2. Logarithmic Cycle Structure Advantage: The logarithmic cycle design ensures consistent gain across the entire frequency band, with low signal distortion and high reception sensitivity, which is the core advantage of this antenna for wideband directional communication.

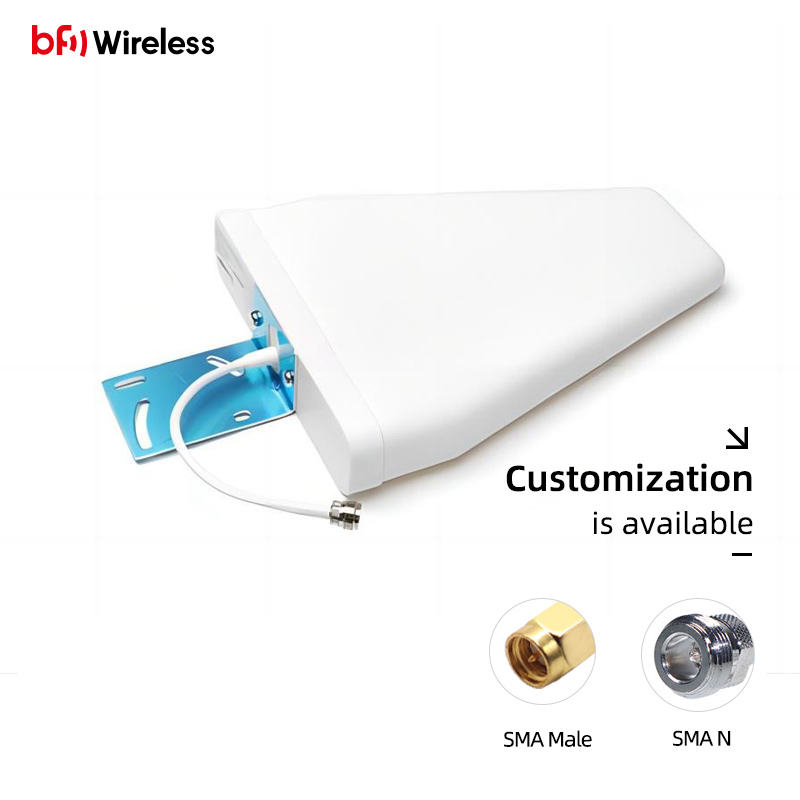

3. Stable SMA Male Straight Connector: The SMA male straight interface is suitable for outdoor installation scenarios, with strong anti-corrosion and anti-vibration performance, ensuring continuous and reliable signal transmission in harsh environments.
4. 3000mm High-Quality RG58 Cable: The 3-meter-long RG58 cable provides sufficient wiring length for outdoor 5G equipment installation, with excellent shielding to resist electromagnetic interference from power lines and industrial equipment.
5. Directional High-Gain Radiation: Concentrates signal energy in a specific direction, improving signal transmission distance and anti-interference ability, suitable for 5G point-to-point communication, remote monitoring, and targeted area signal coverage.
6. Durable & Environmentally Compliant: The rugged shell is resistant to wind, rain, and UV radiation, suitable for long-term outdoor use; fully compliant with RoHS and REACH regulations, facilitating cross-border 5G equipment trade.

Application Scenarios

This 5G logarithmic cycle antenna is widely applicable to 5G wireless communication equipment, including but not limited to 5G small base stations for point-to-point networking, outdoor 5G remote monitoring systems, industrial IoT 5G gateways, smart city 5G dedicated line equipment, and 5G vehicle-mounted communication stations. It is especially suitable for scenarios such as rural 5G network coverage, industrial park dedicated 5G signal transmission, mountainous area remote data transmission, and outdoor event 5G targeted coverage, providing reliable wideband signal support for 5G application deployment.
