Core Product Features: 470MHz Frequency Optimization, Orange-Yellow Marking for Easy Production Line Integration

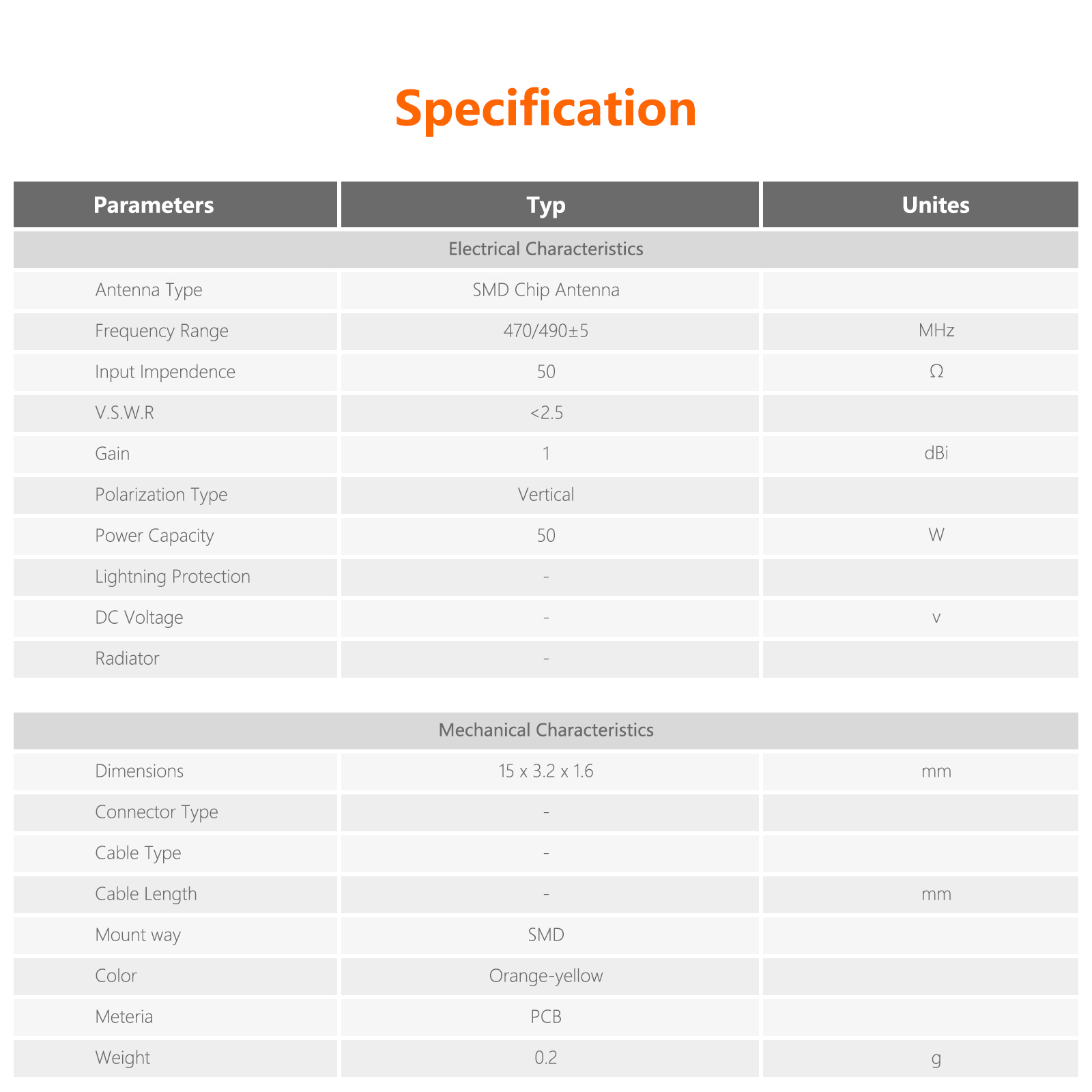

1. Electrical Characteristics: Precise Frequency + Stable Transmission

• 470±5MHz Dedicated Coverage: Operating frequency is precisely locked at 470±5MHz, perfectly matching mainstream 470MHz scenarios such as NB-IoT (Narrowband Internet of Things), industrial wireless data transmission, and smart meters. It is a core communication component for low-power wide-area network (LPWAN) and industrial IoT terminals, enabling "one-frequency multi-scenario" efficient adaptation without antenna replacement due to frequency deviation.
• Low VSWR + Moderate Gain: Voltage Standing Wave Ratio (V.S.W.R) is <2.5, combined with 50Ω standard input impedance, effectively reducing signal reflection and energy loss. The 1dBi gain adopts vertical polarization design, supporting 360° omnidirectional radiation. In scenarios like NB-IoT node networking and industrial sensor data backhaul, it ensures uniform signal coverage and stable reception, balancing transmission distance and power consumption, which is especially suitable for long-endurance device requirements.
• High Power Stable Capacity: With a power capacity of 50W, it supports stable operation of industrial-grade wireless data transmission modules and high-power NB-IoT gateways. Even in scenarios with concurrent data from multiple nodes (e.g., hundreds of smart meters in a city transmitting simultaneously), it avoids signal interruption caused by power overload, ensuring communication continuity.

2. Mechanical Characteristics: SMD Mounting + Orange-Yellow Marking, Maximizing Mass Production Efficiency

• Small-Size SMD Integration: Overall dimension is 15mm×3.2mm×1.6mm, weight is only 0.2g. Adopting SMD (Surface Mount Device) technology, it can be directly welded in batches via SMT production lines and seamlessly integrated with device PCB boards, perfectly adapting to the "miniaturization and high integration" design trend of terminal devices, such as micro NB-IoT nodes and industrial sensing modules.

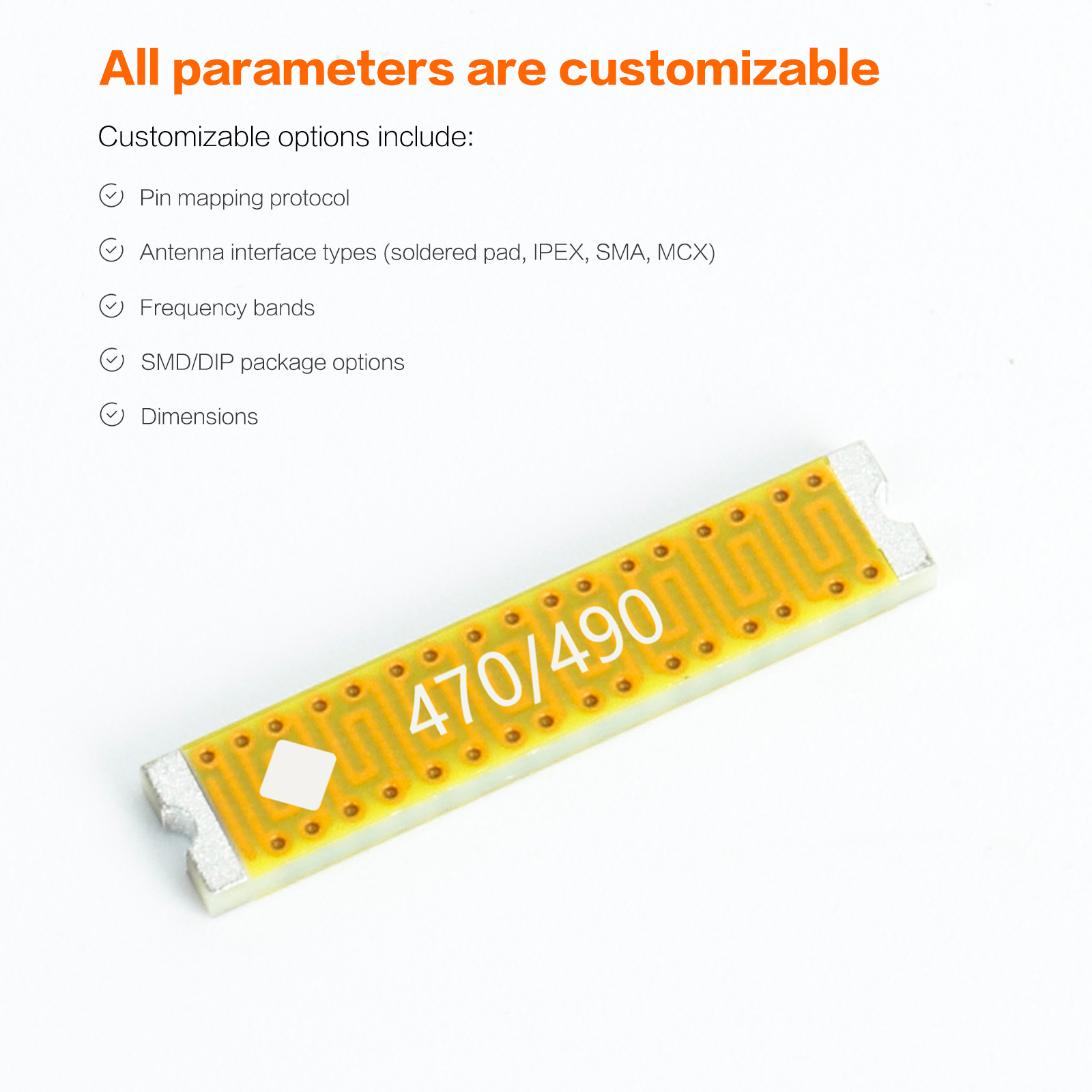

• Orange-Yellow PCB Material for Easy Identification: The main body is made of orange-yellow PCB material, which has extremely high visual recognition in production lines, facilitating quick identification and welding by automated equipment and reducing production misjudgment rates. The PCB material also has excellent electrical performance and structural stability, not easy to fall off after welding, and is compatible with large-scale automated production processes, greatly improving mass production efficiency and yield.
• No Additional Cables/Connectors: Directly integrated on the device PCB board, no external cables or connectors are required, reducing component space occupation and signal transmission loss, simplifying the internal wiring design of the terminal, and making the product more concise and reliable.

3. Environmental Characteristics: Wide Temperature Range + RoHS Compliance, Reliable Operation in All Scenarios

• Ultra-Wide Temperature Adaptation: Both operating and storage temperature ranges are -45~+85℃, enabling stable operation in extreme scenarios such as extremely cold winters in northern regions (-40℃), industrial high-temperature workshops (+80℃), and outdoor exposure environments (+70℃), without additional temperature control measures. It is suitable for multi-scenario deployment such as NB-IoT IoT outdoor nodes, industrial automation equipment, and polar scientific research sensing terminals.
• RoHS Compliance for Eco-Friendliness: Strictly RoHS compliant, free of harmful substances such as lead and cadmium. It can be safely used in consumer-grade NB-IoT smart devices (e.g., smart home sensors) and industrial-grade wireless terminals, meeting the environmental and compliance requirements of the global market and eliminating compliance barriers in international trade.

Core Advantages: Focus on "Dedicated Frequency, Easy Mass Production, Wide Scenarios" to Empower 470MHz Wireless Ecosystem

1. "470MHz Dedicated" Precise Adaptation: Deeply optimized for the 470MHz frequency band (core sub-band of NB-IoT), a single antenna can match core scenario devices such as NB-IoT IoT, industrial data transmission, and smart meters, reducing inventory complexity across scenarios. It is especially suitable for IoT solution providers and smart device manufacturers to carry out large-scale projects.
2. "SMD Mounting + Orange-Yellow Marking" Efficient Mass Production: SMD technology is compatible with automated production lines, and the orange-yellow material improves production line identification efficiency, significantly reducing production cycle and cost. The small-size design can be embedded into various micro terminals, solving the industry pain point of "difficult antenna integration in miniaturized devices".
3. "Wide Temperature Range + High Power" Wide Scene Coverage: The -45~+85℃ wide temperature range adapts to multiple climate scenarios around the world, and the 50W power supports industrial-grade high-load transmission. It can work stably from urban NB-IoT smart meter networking to industrial equipment wireless control, from outdoor environmental monitoring to polar sensing terminals.

Multi-Industry Application Scenarios: Covering Core Needs of 470MHz Wireless for Intelligent Upgrades in All Fields

1. NB-IoT IoT: Smart Meters & Urban Sensing. Compatible with NB-IoT smart meters and urban environmental sensors (e.g., air quality monitoring nodes), SMD mounting makes the terminals more compact, and 1dBi omnidirectional gain ensures stable data backhaul in multi-node networking within urban areas. The wide temperature range supports outdoor nodes operating long-term in environments from -30℃ to +60℃, facilitating large-scale deployment of NB-IoT IoT in smart cities for functions like remote meter reading and real-time environmental data monitoring.
2. Industrial IoT: Equipment Status & Data Collection. Matched with 470MHz industrial sensors (e.g., equipment vibration sensors, temperature and humidity sensors), it occupies no space after being embedded into the device PCB board (15mm size). Vertical polarization and omnidirectional radiation enable stable signal backhaul to the gateway in complex factory layouts, supporting predictive maintenance of equipment and real-time monitoring of production environments, especially suitable for industrial workshops with high dust, high and low temperatures.
3. Smart Grid: Power Distribution & Electricity Monitoring. Used in 470MHz smart power distribution terminals and electricity monitoring modules, the high power capacity (50W) supports concurrent data upload from multiple terminals. The SMD integration method simplifies terminal design, and RoHS compliance meets the environmental requirements of power equipment, ensuring stable transmission of grid data (e.g., power distribution load, electricity anomalies) and assisting in intelligent grid operation and maintenance.
4. Outdoor Monitoring: Asset & Environmental Tracking. Matched with 470MHz outdoor monitoring terminals (e.g., power grid asset tracking tags, meteorological sensors), the wide temperature range adapts to extreme environments such as mountains (-20℃) and deserts (+60℃). Omnidirectional radiation ensures stable communication between the terminal and the gateway in the wilderness, providing reliable data support for power grid asset management and meteorological research.
