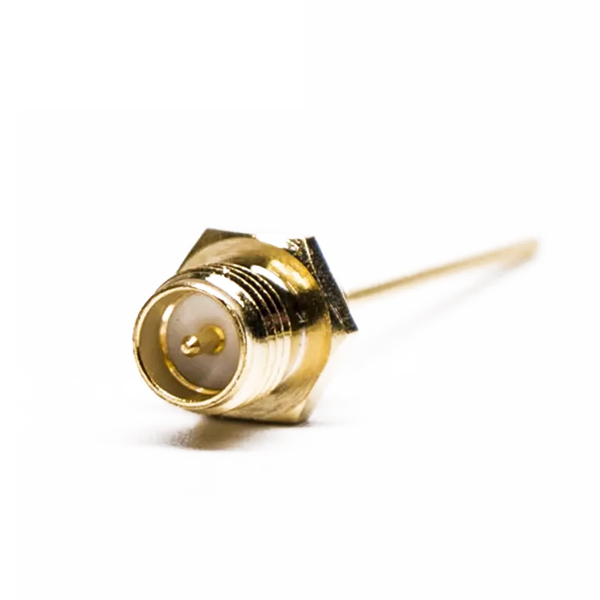

Customize Long Pin Rear Bulkhead Panel Mount SMA Female Connector for PCB Brass RF Smb Female Rf Plug to Ipx Gold Plating 50 Ohm

Part NO.: BWSMA-KWE-Z001



All types of SMA connectors from OEM Manufacturer in China



Number of Cores

Right Angle/90 Degree / Straight/180 Degree


Product Description

Connector: RP-SMA male (inside threads with female inner hole pin);

Termination: cable-crimp; Impedance: 50 ohm
Well built: Connectors made from gold-plated brass for mechanical durability and secure connection
Compatible with coax cable RG-174, RG-316, RG-188, RG-188A, LMR-100
Great to build cable assemblies for your 50ohm RF applications including 4G LTE antennas, routers, WiFi antenna systems, etc

Products Feature

Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;


Main body: Brass Au:1u
Center needle: Phosphor Au:3u
Insulator: TEFLON White

Gender: Male / Female
Orientation: Straight / Right Angle
Polarity: Standard / Reverse Pole
Impedance: 50Ω / 75Ω
Mounting Type: PCB Mount / Panel Mount / Cable
Mounting Feature: Flange / Bulkhead / Through Hole / SMT / Offset Type / Plate Edge Mount
Contact Termination Style: Solder Cup / Solder / Crimp / Screw-joint / Through Hole / SMT
Shield Termination: Crimp / Compression / Clamp / Twist On / Solder / Locking Wire
Cable Type: RG58 / RG59 / RG174
Function: Waterproof / Dustproof
Body Material: Copper / Steel
Body Plating: Gold Plating / Nickel Plating


Related Products

Antenna production workshop

Production of products through the ISO9001 system certification.Accredited by major operators, major equipment manufacturers and suppliers,We have advanced and perfect environmental testing equipment in the industry to ensure product quality.

Test Equipment Microwave darkroom

The dark room is stable in rotation, and has the function of translation and swing, as well as the function of constant temperature and humidity environment control. After the verification of Theil laboratory and Kyle laboratory, the system has the advantages of high stability and small test error.

Our office

Having accumulated rich experience in antenna design and manufacturing, batwireless can deliver exclusive antenna solutions for your loT project.
