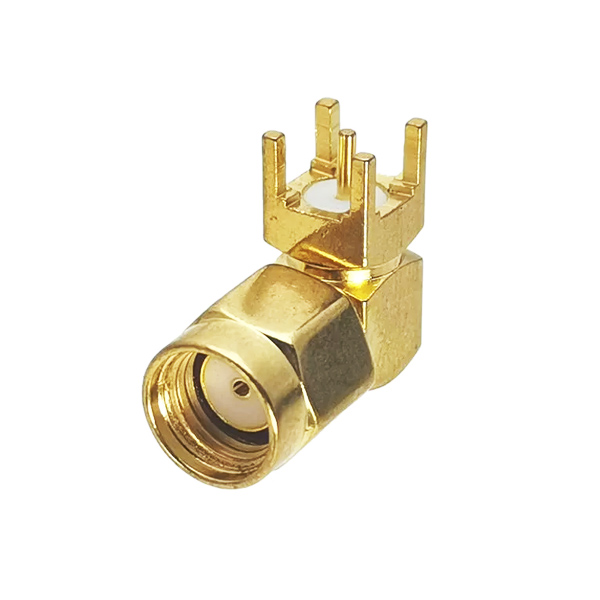

High Quality SMA Plug Male Right Angle Connector for Panel PCB




Antennas Type: BFSMA-KWE

Impendence (Ω): 50Ω

V.S.W.R :<1.15+0.02f(GHZ)

Frequenc Range(MHz) :0~3GHz

DC Voltage(V): 1000Vmax

Withstand Voltage(V): 1000Vrms(

Contact resistance:≤3MΩ(inner conductor) ≤2MΩ(outer conductor)

Insulation resistance: ≥5000MΩ

Insert Loss: 0.15dB(6GHz)

RF leakage:-60dB/-90dB(Flexible cable/semi-rigid cable)@2-3GHz

Durability(mating): 500 Cycle

shell: HPb59-1(Brass) Gold-Plated

Inner conductor :HPb59-1(Brass) Gold-Plated

threaded sleeve :HPb59-1(Brass) Gold-Plated

seal ring :Silicone

snap ring:Phosphor copper (nickel plated)

insulator :PTFE

Weight(g) :None

OperatingTemperature(℃): -65~+165(PE CABLE-40~+85)



Number of Cores

Right Angle


Product Description

Connector: SMA male

Termination: cable-crimp; Impedance: 50 ohm
Well built: Connectors made from gold-plated brass for mechanical durability and secure connection
Compatible with coax cable RG-174, RG-316, RG-178,LMR-200
Great to build cable assemblies for your 50ohm RF applications including 4G LTE antennas, routers, WiFi antenna systems, etc

Products Feature

Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;


Main body: Brass Au:1u
Center needle: Phosphor Au:3u
Insulator: TEFLON White

Gender: Male / Female
Orientation: Straight / Right Angle
Polarity: Standard / Reverse Pole
Impedance: 50Ω / 75Ω
Mounting Type: PCB Mount / Panel Mount / Cable
Mounting Feature: Flange / Bulkhead / Through Hole / SMT / Offset Type / Plate Edge Mount
Contact Termination Style: Solder Cup / Solder / Crimp / Screw-joint / Through Hole / SMT
Shield Termination: Crimp / Compression / Clamp / Twist On / Solder / Locking Wire
Cable Type: RG58 / RG59 / RG174
Function: Waterproof / Dustproof
Body Material: Copper / Steel
Body Plating: Gold Plating / Nickel Plating
